🖼️ QuizWizz Admin UI Atlas

Historical record — 2026-07-28

Preserved as observed. Current truth: Program Masterplan.

• scope: read-only wp-admin walkthrough of the live WRDP bench.
• source: QuizWizz v1.10.0, schema 1.6.3.
• account: short-lived temporary administrator; removed after capture.
• rule: no Save settings, Update, Publish, Import, install, restore, download or file-upload action was submitted.

Menu & navigation

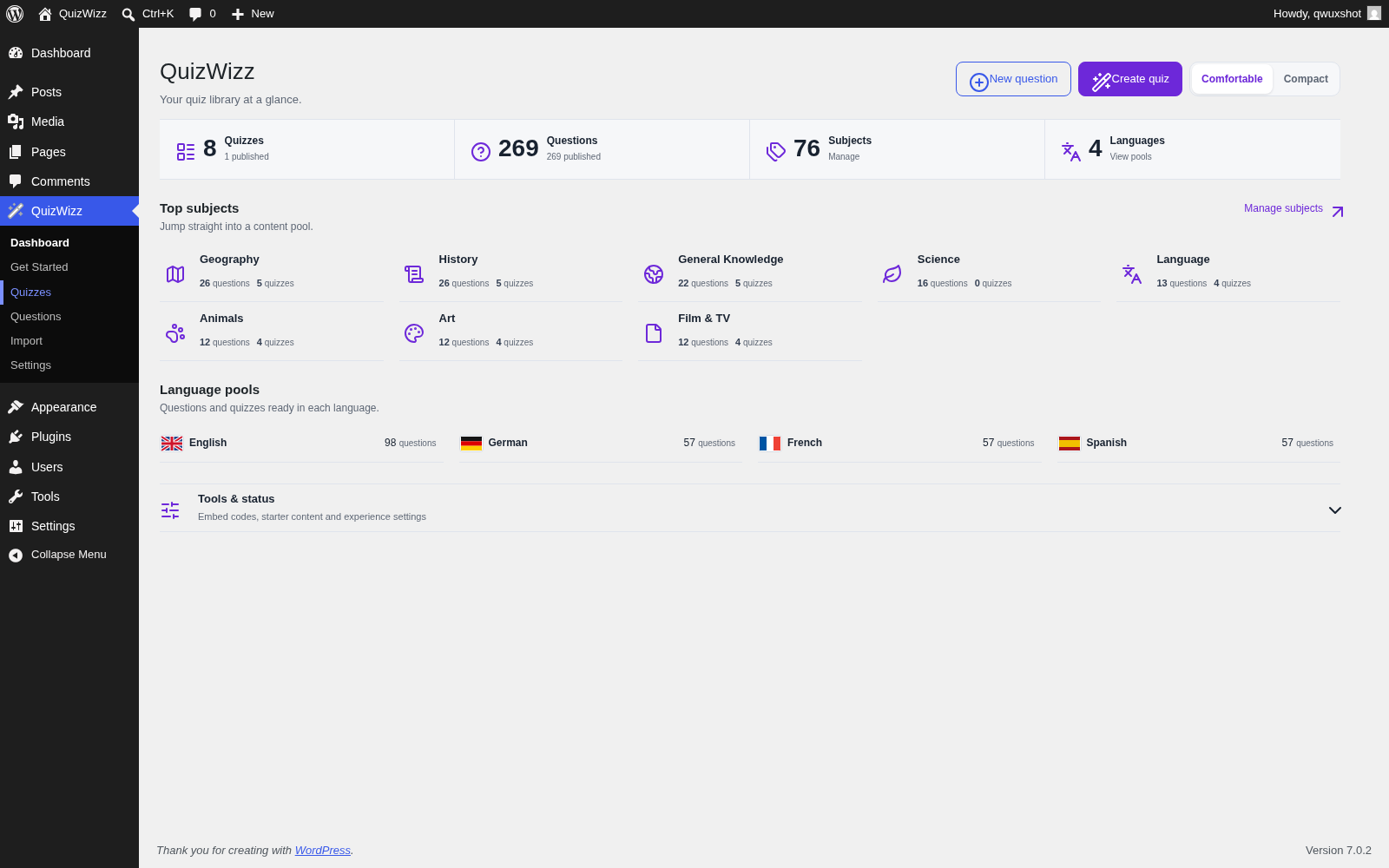

QuizWizz menu

• url: admin.php?page=qw-dashboard
• capability: edit_qw_quizzes — source Admin/DashboardPage.php:21
• state: stored navigation

• contains: top-level menu and all QuizWizz submenus

• notes: submenu opens from the WordPress admin rail

• PostTypes.php:92 forces the QuizWizz parent highlight; PostTypes.php:103 prunes the two CPT post-new.php submenu entries.

• qw_quiz and qw_question have show_in_rest => false, so their editor coverage below is the classic editor.

Dashboard

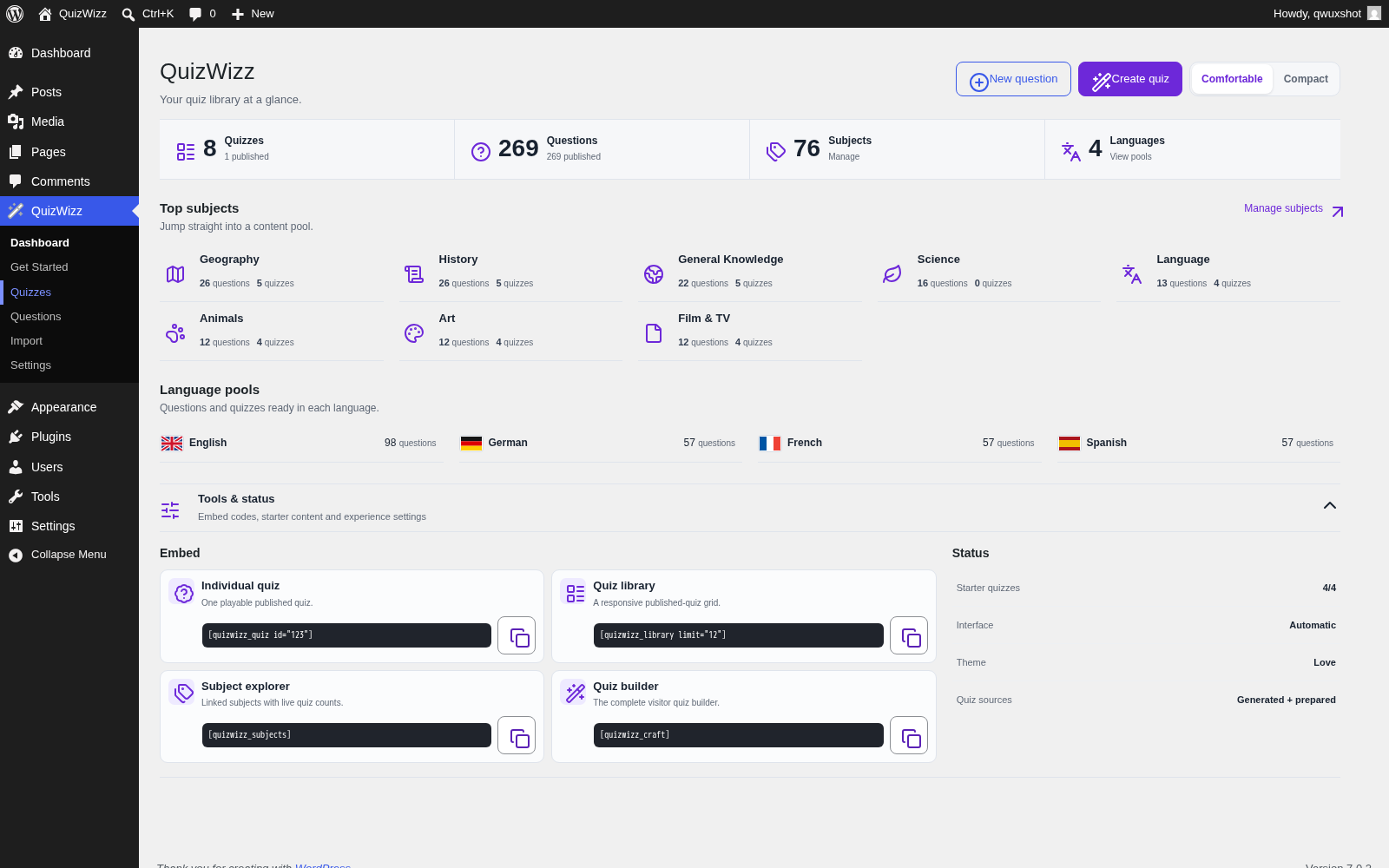

Dashboard

• url: admin.php?page=qw-dashboard
• capability: edit_qw_quizzes — source Admin/DashboardPage.php:31
• state: stored dashboard

• contains: status cards, quick links and Tools & status
• notes: native details was opened for this capture

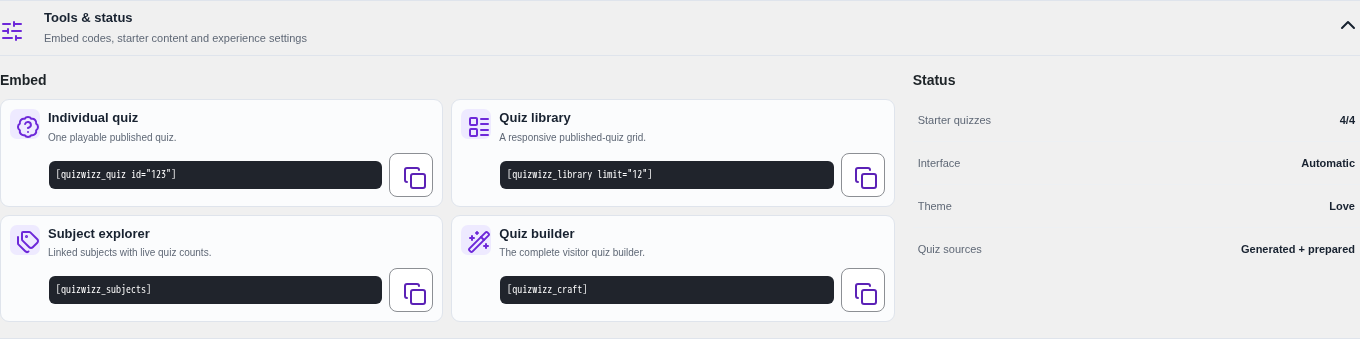

Dashboard — tools & status

• url: admin.php?page=qw-dashboard
• capability: edit_qw_quizzes — source Admin/DashboardPage.php:145
• state: details opened

• contains: Tools & status contents
• notes: the <details> state was not saved

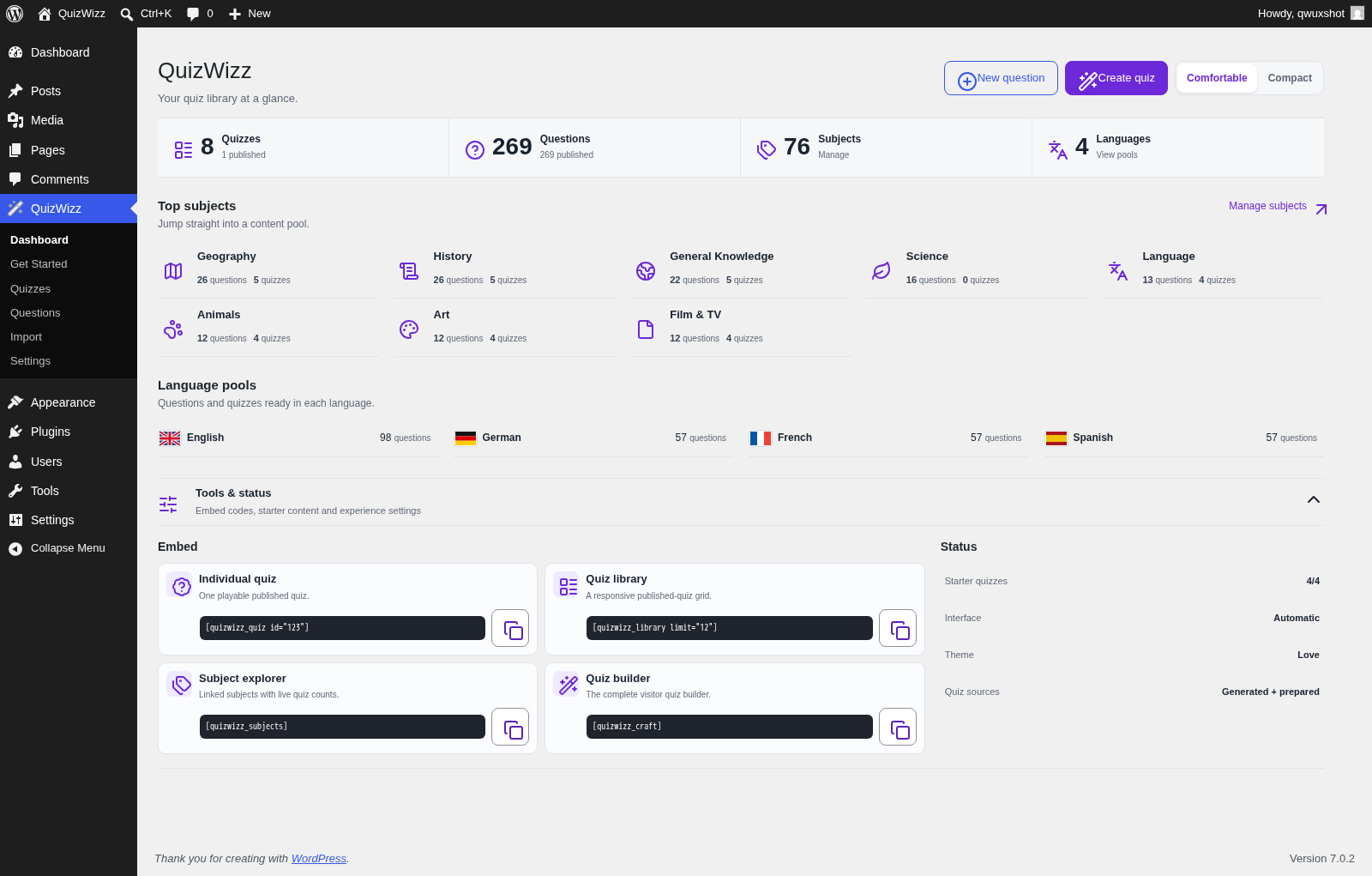

Dashboard — compact density

• url: admin.php?page=qw-dashboard
• capability: edit_qw_quizzes — source assets/js/qwizz-density.js:1
• state: revealed by toggling density, not saved

• contains: compact density rendering
• notes: the control writes local display preference rather than qw_exposure_settings

Get Started

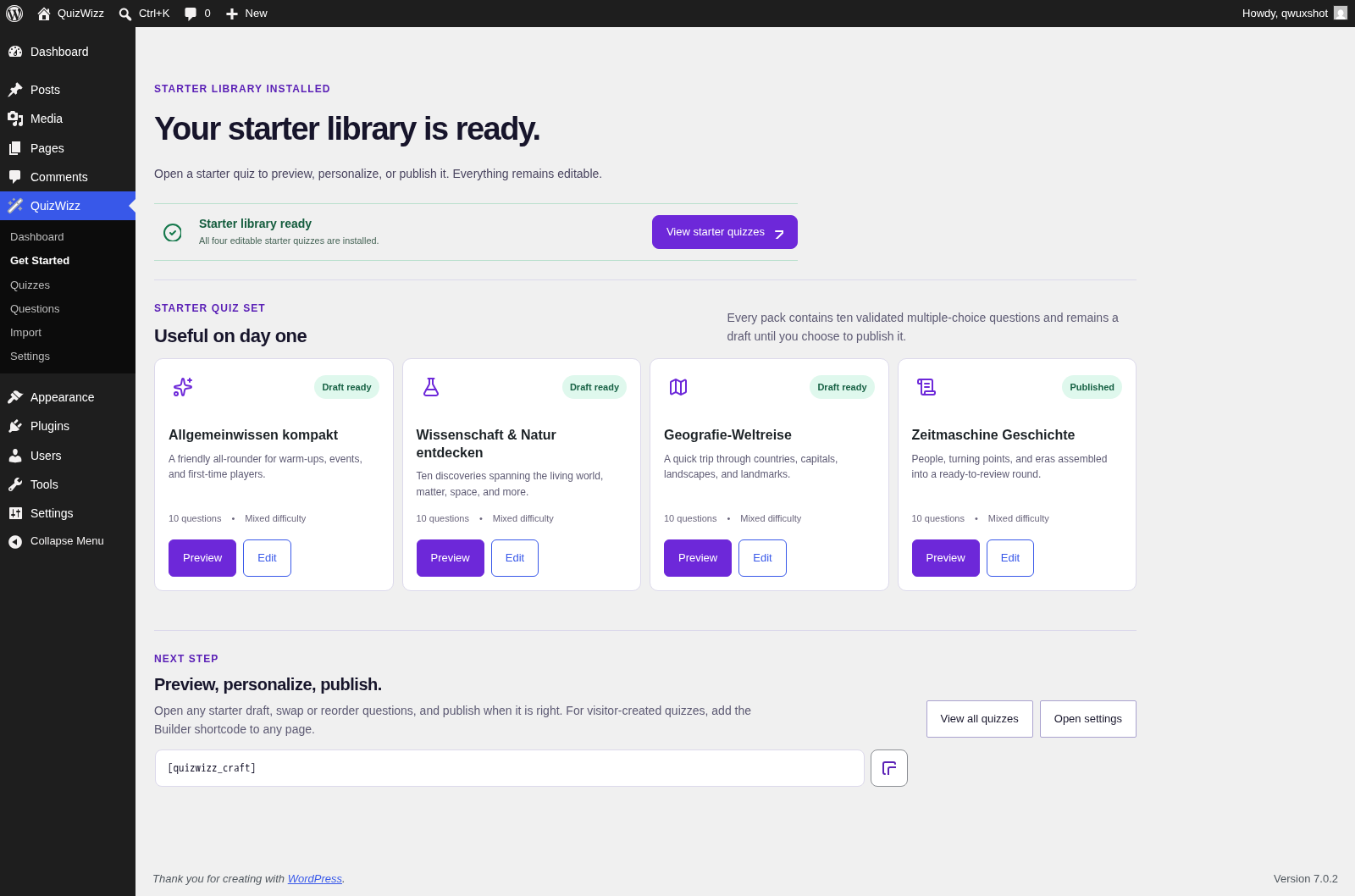

Get Started

• url: admin.php?page=qw-get-started
• capability: publish_qw_questions — source Admin/StarterPage.php:37
• state: stored page

• contains: starter-library explanation and install action

• notes: qwizz_install_starter_library is visible but was never submitted

• originating admin-post: qwizz_install_starter_library — Admin/StarterPage.php:269.

• first-run notice is separately recorded as unavailable in Coverage checklist; this bench does not have zero quizzes.

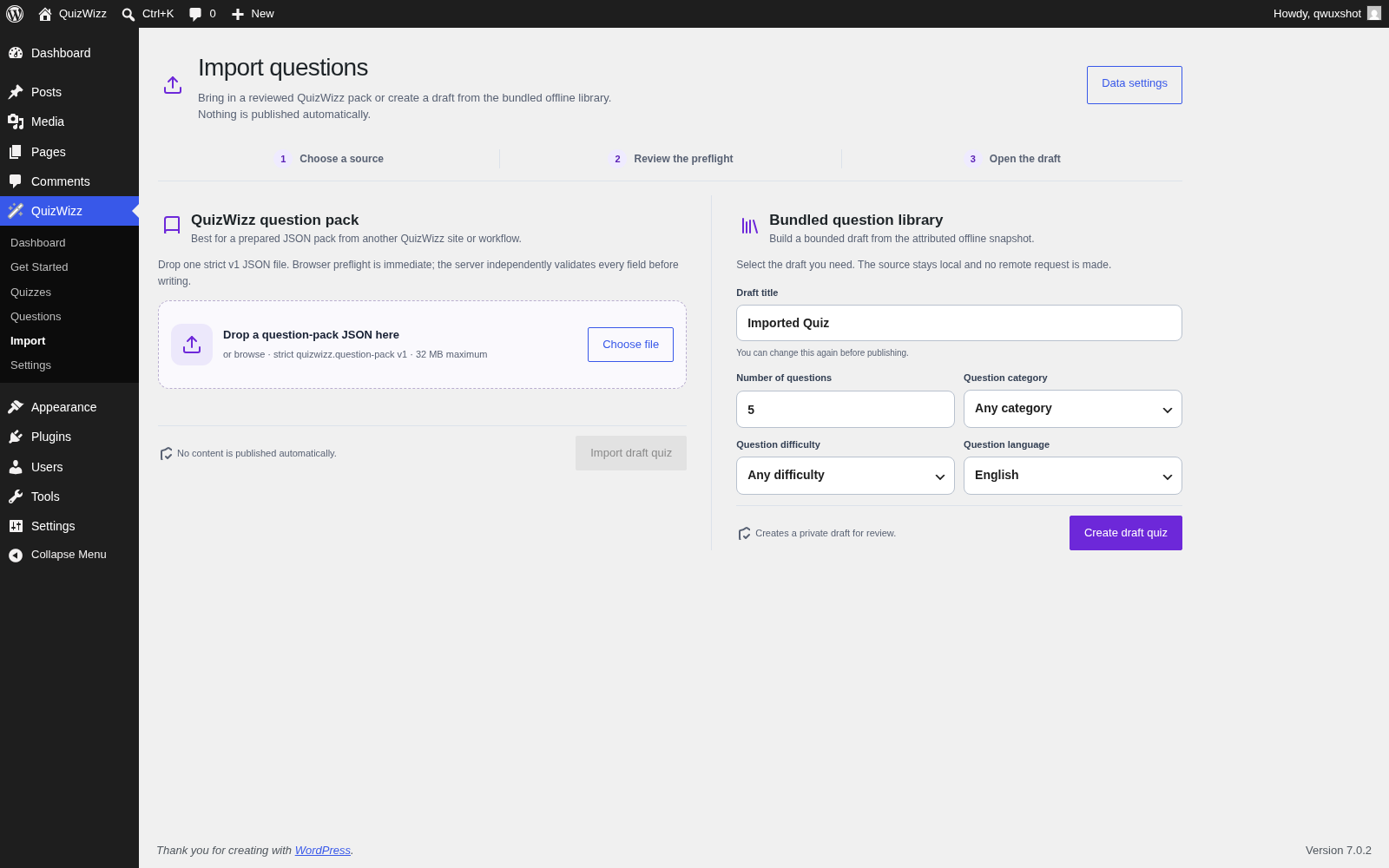

Import

Import

• url: admin.php?page=qw-import
• capability: publish_qw_questions — source Admin/ImportPage.php:20
• state: stored page

• contains: quiz import and bundled-pack workflows
• notes: qw_import and qwizz_import_question_pack were not submitted

Import — question pack

• url: admin.php?page=qw-import
• capability: publish_qw_questions — source Admin/ImportPage.php:146
• state: stored page

• contains: Question Pack drop zone and preflight area

• notes: file preflight remains conditional on selecting a file; no file was selected

• originating admin-posts: qw_import — Admin/ImportPage.php:244; qwizz_import_question_pack — Admin/ImportPage.php:170.

Settings

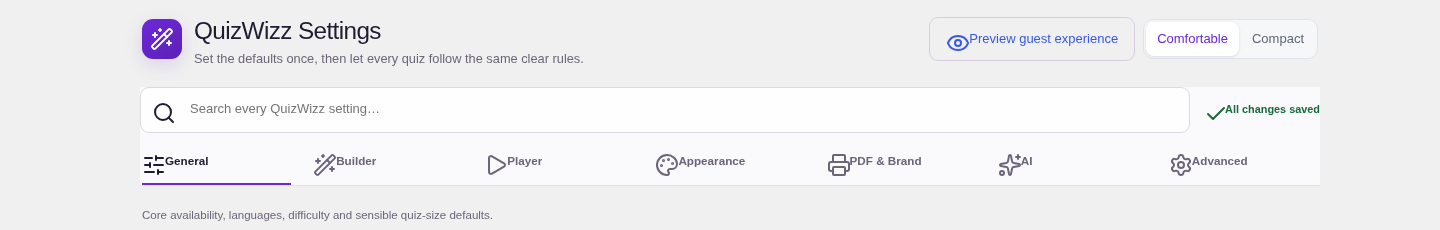

Settings chrome

• url: admin.php?page=qw-settings
• capability: manage_options — source Admin/views/settings-page.php:87
• state: stored page

• contains: search, workspace navigation and save-status chrome
• notes: all workspaces share REST-backed local state until Save settings

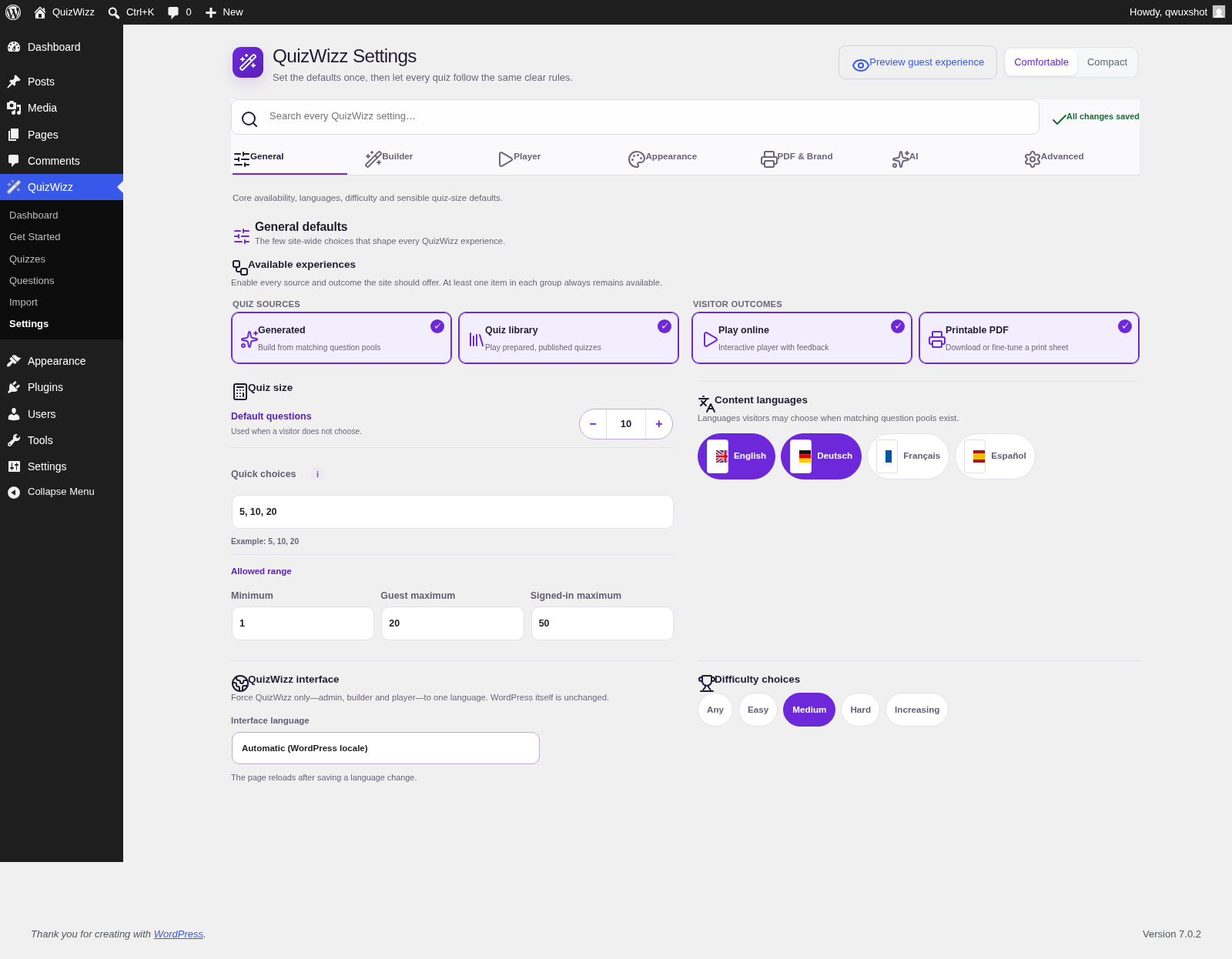

Settings — General

• url: admin.php?page=qw-settings#qw-essential
• capability: manage_options — source Admin/views/settings-page.php:87
• state: stored page

• contains: Available experiences, Quiz size, Content languages, interface and difficulties
• notes: General is the initial workspace

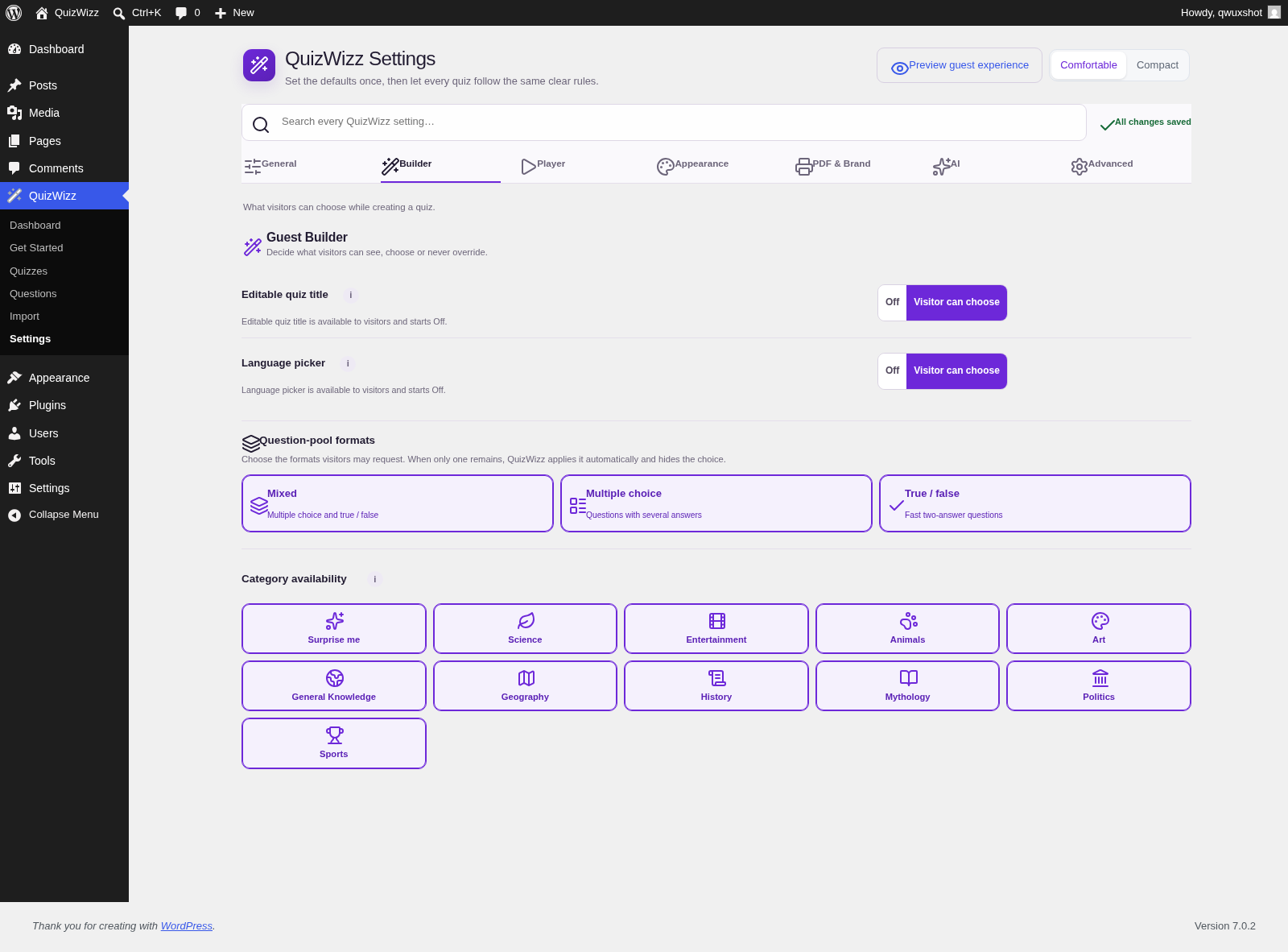

Settings — Builder

• url: admin.php?page=qw-settings#qw-builder
• capability: manage_options — source Admin/views/settings-page.php:87
• state: stored page

• contains: Guest Builder matrix rows, question-pool formats and category availability
• notes: category list is populated by JavaScript

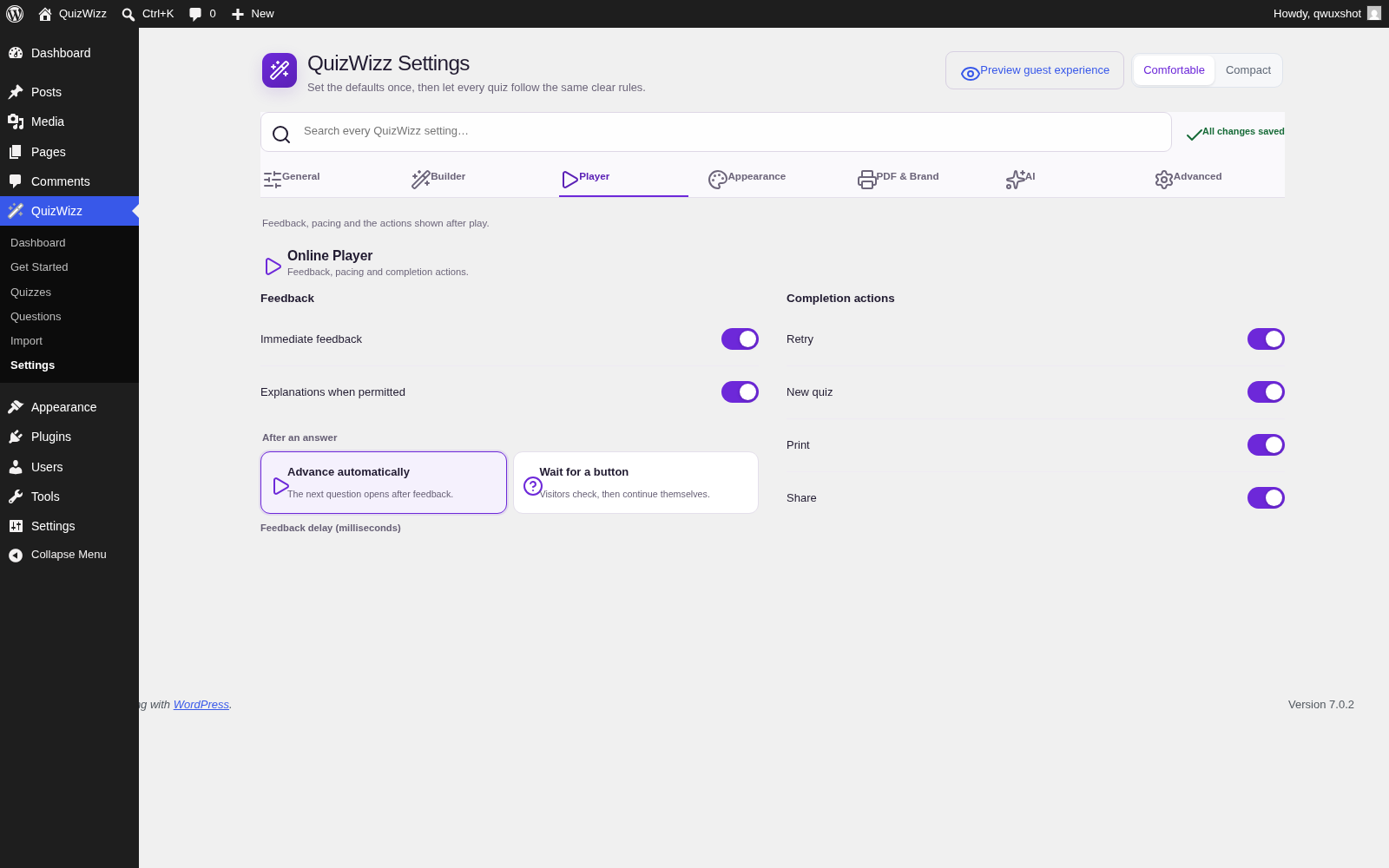

Settings — Player

• url: admin.php?page=qw-settings#qw-player
• capability: manage_options — source Admin/views/settings-page.php:114
• state: revealed by toggling automatic advance, not saved

• contains: feedback, completion actions and automatic-delay field
• notes: the automatic-delay panel is conditional on player.auto_advance_ms > 0

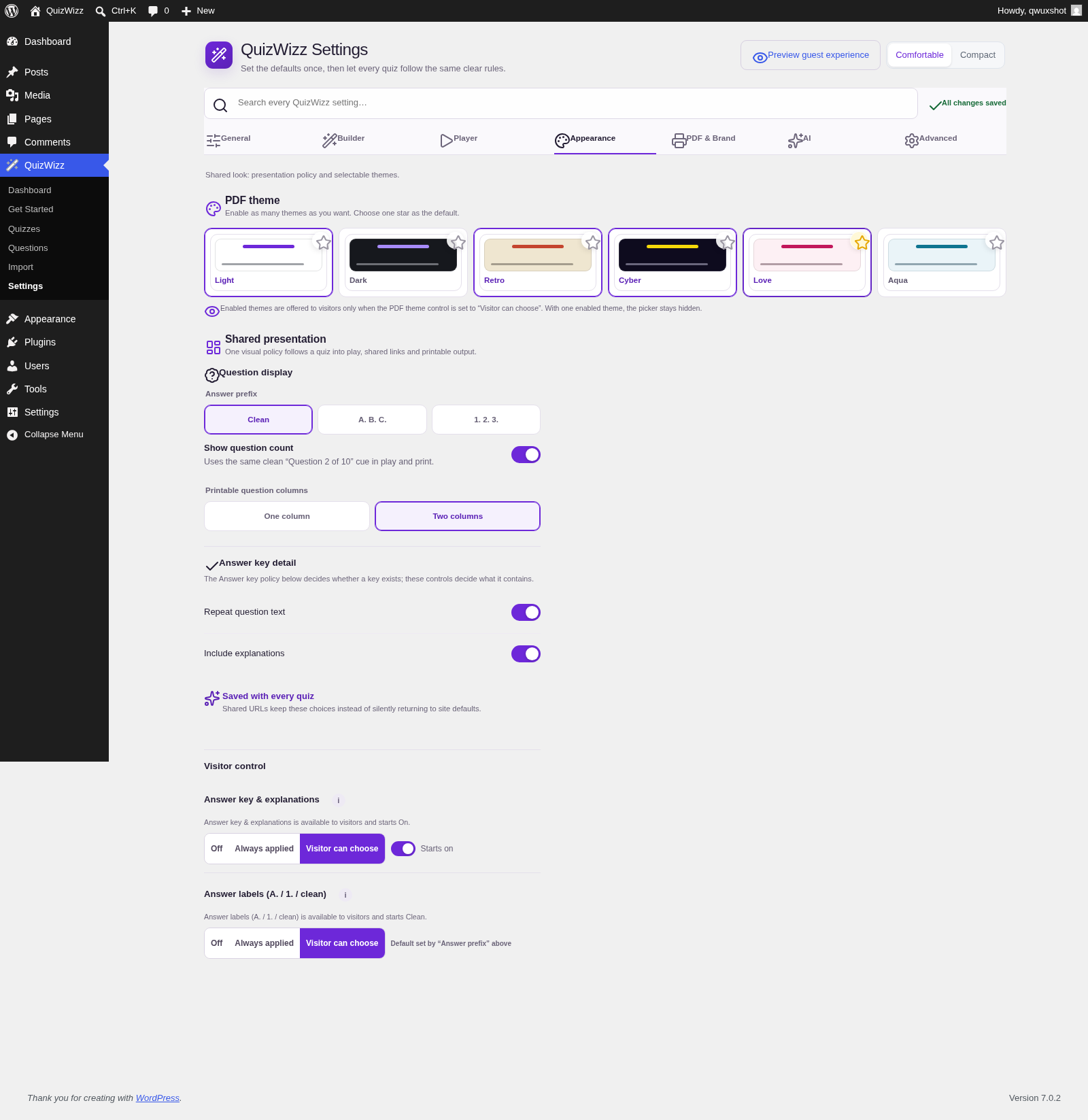

Settings — Appearance

• url: admin.php?page=qw-settings#qw-presentation
• capability: manage_options — source Admin/views/settings-page.php:87
• state: stored page

• contains: shared presentation controls and six PDF theme cards
• notes: presentation and theme controls share the same unsaved-state model

Settings — PDF & Print

• url: admin.php?page=qw-settings#qw-pdf
• capability: manage_options — source Admin/views/settings-page.php:150
• state: banner controls revealed by forcing Banner on the sheet and selecting Built-in icon, not saved

• contains: paper, footer, matrix rows and six built-in icon choices
• notes: the forced exposure state was used only to reveal dependent controls

Settings — banner: site identity

• url: admin.php?page=qw-settings#qw-pdf
• capability: manage_options — source Admin/views/settings-page.php:150
• state: revealed by selecting Site identity, not saved

• contains: site-identity banner panel
• notes: source change stayed in browser-local settings state

Settings — banner: upload

• url: admin.php?page=qw-settings#qw-pdf
• capability: manage_options — source Admin/views/settings-page.php:150
• state: revealed by selecting Upload, not saved

• contains: upload banner panel and validation affordance
• notes: no file was selected or uploaded

Settings — AI

• url: admin.php?page=qw-settings#qw-ai
• capability: manage_options — source Admin/views/settings-page.php:168
• state: revealed by enabling AI, not saved

• contains: privacy, budget, hard-limit and provider-price details
• notes: native AI and price-guard details were opened

Settings — Advanced

• url: admin.php?page=qw-settings#qw-data
• capability: manage_options — source Admin/views/settings-page.php:226
• state: stored page

• contains: retention, portability, imports, owner-scoped backups, hierarchy and diagnostics
• notes: older-backup details was opened where present

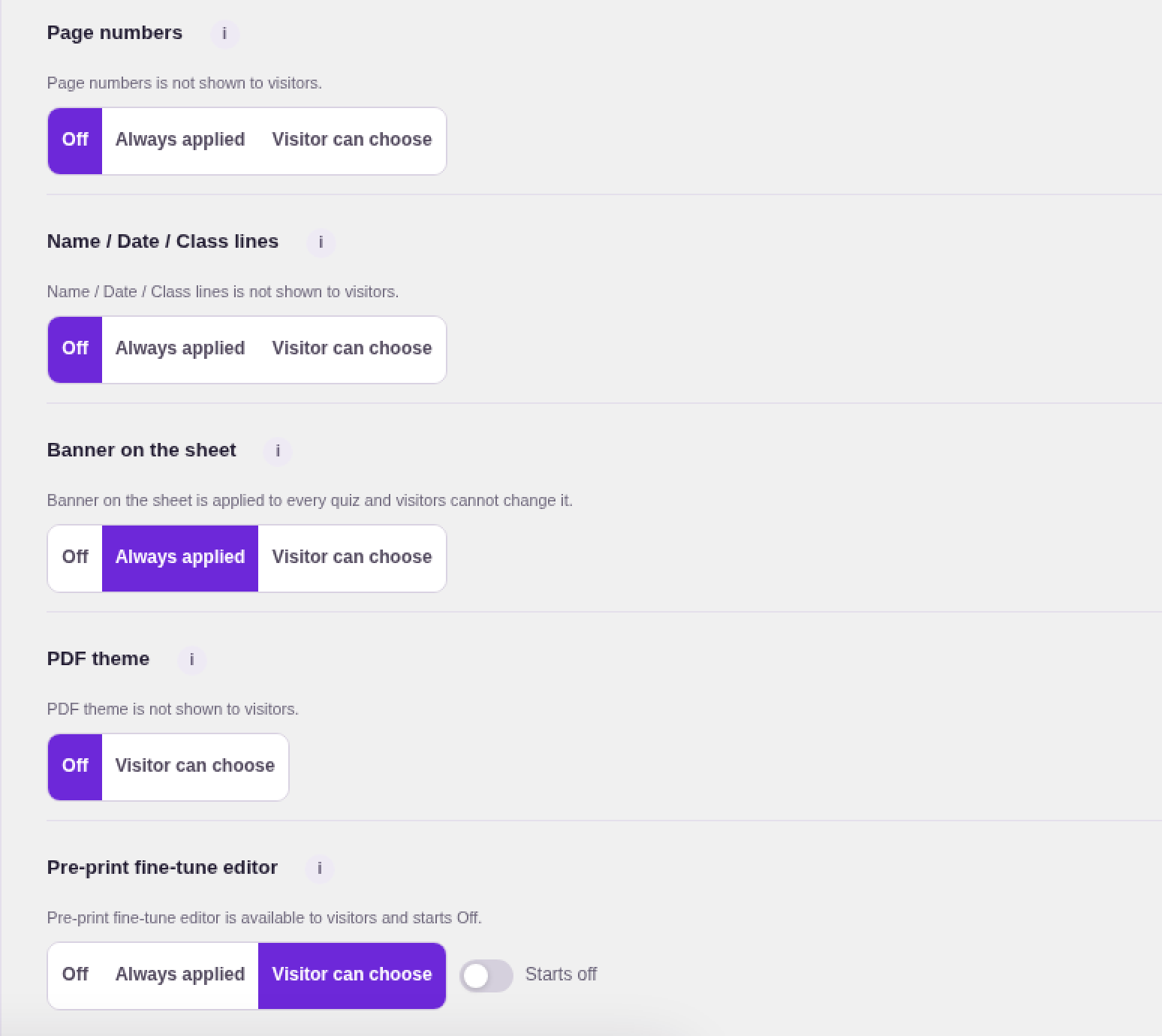

Settings — exposure matrix

• url: admin.php?page=qw-settings#qw-data
• capability: manage_options — source Admin/views/settings-page.php:87
• state: stored page

• contains: hidden / always applied / visitor choices and default toggle
• notes: matrix state is local until Save settings

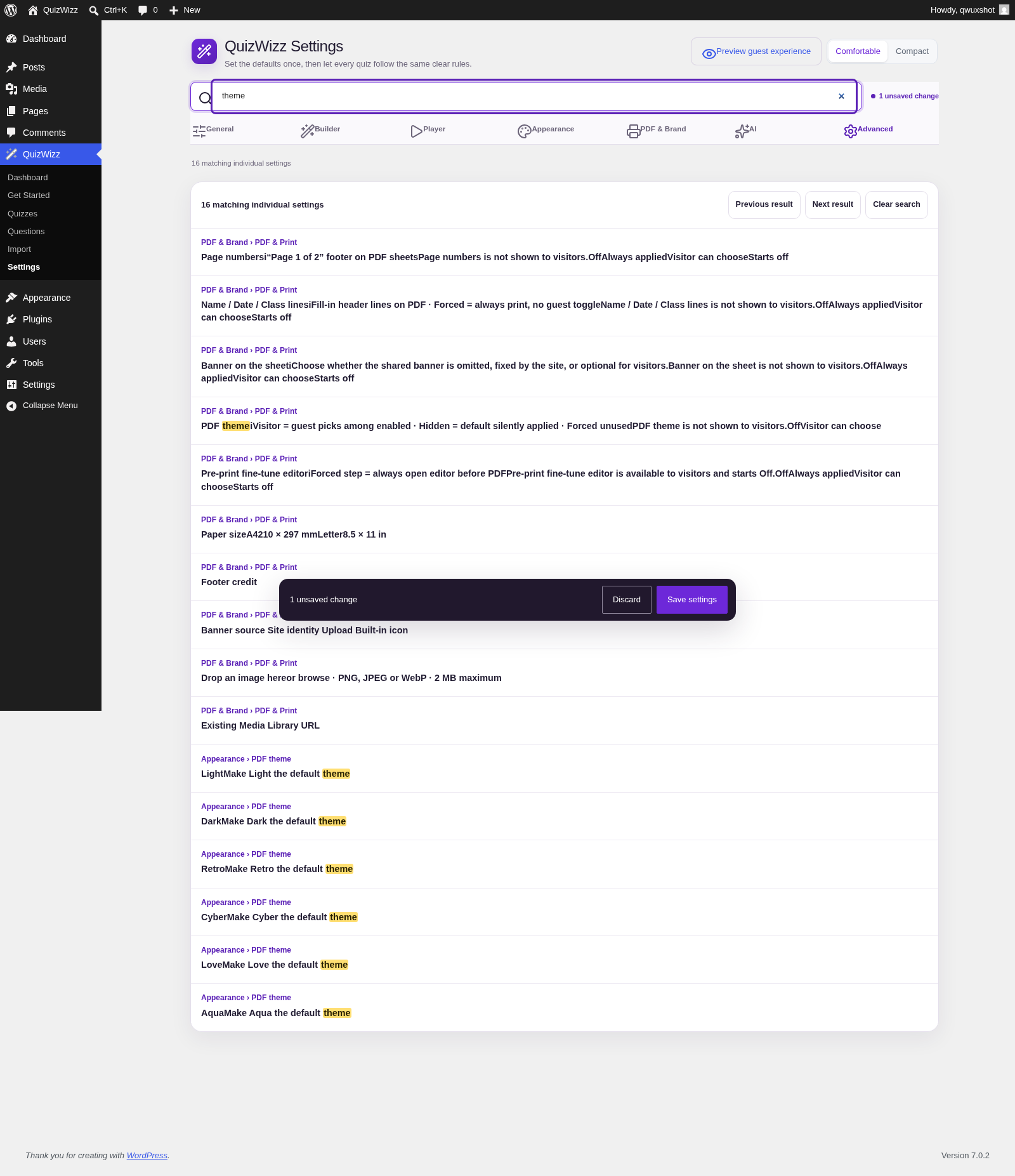

Settings — search

• url: admin.php?page=qw-settings
• capability: manage_options — source assets/js/qwizz-admin-settings.js:89
• state: revealed by typing theme, not saved

• contains: search-result list and workspace breadcrumbs
• notes: typing filters the rendered settings index

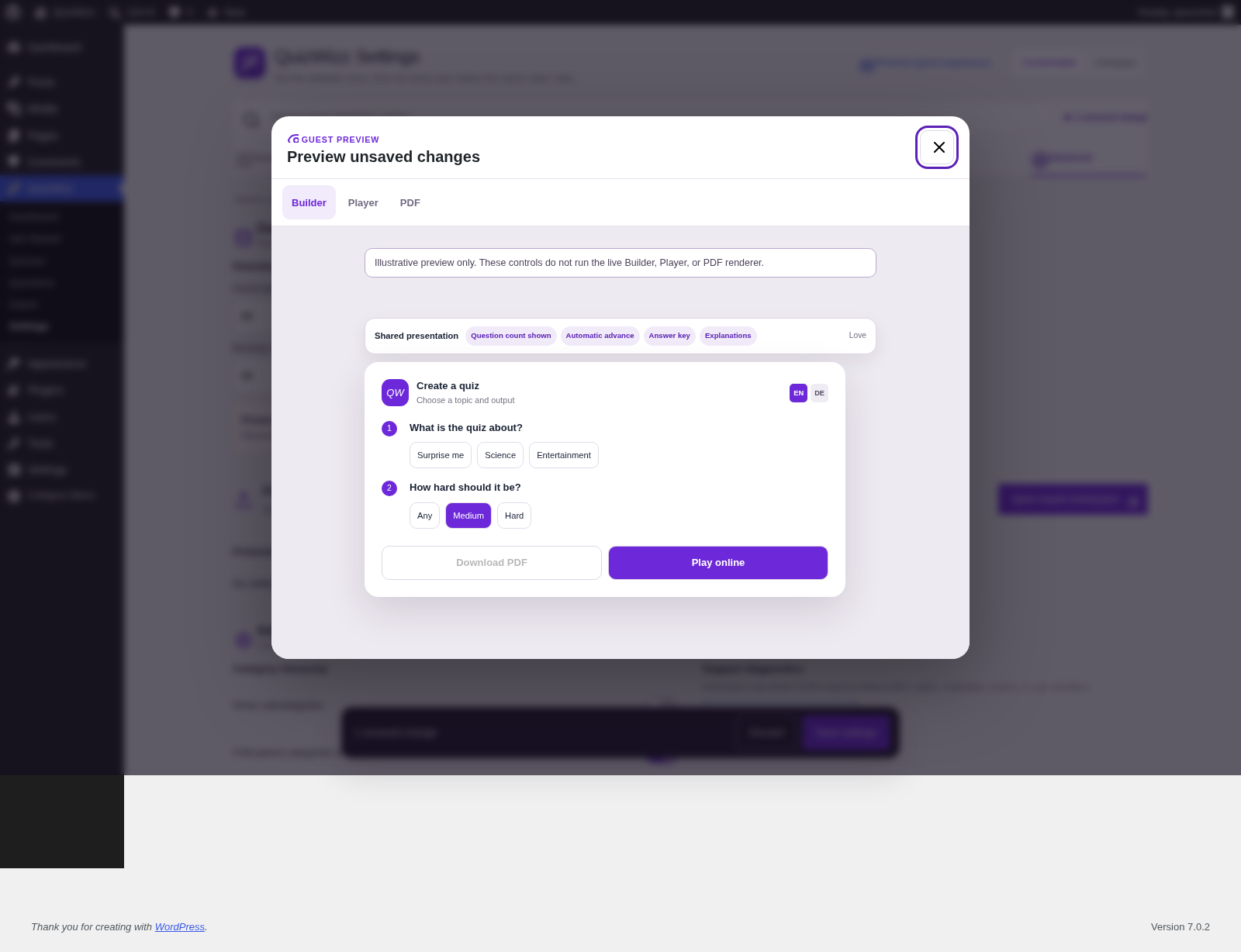

Settings — preview

• url: admin.php?page=qw-settings
• capability: manage_options — source Admin/views/settings-page.php:271
• state: revealed by opening Preview, not saved

• contains: modal and Builder / Player / PDF tabs
• notes: the preview is illustrative and does not run a live renderer

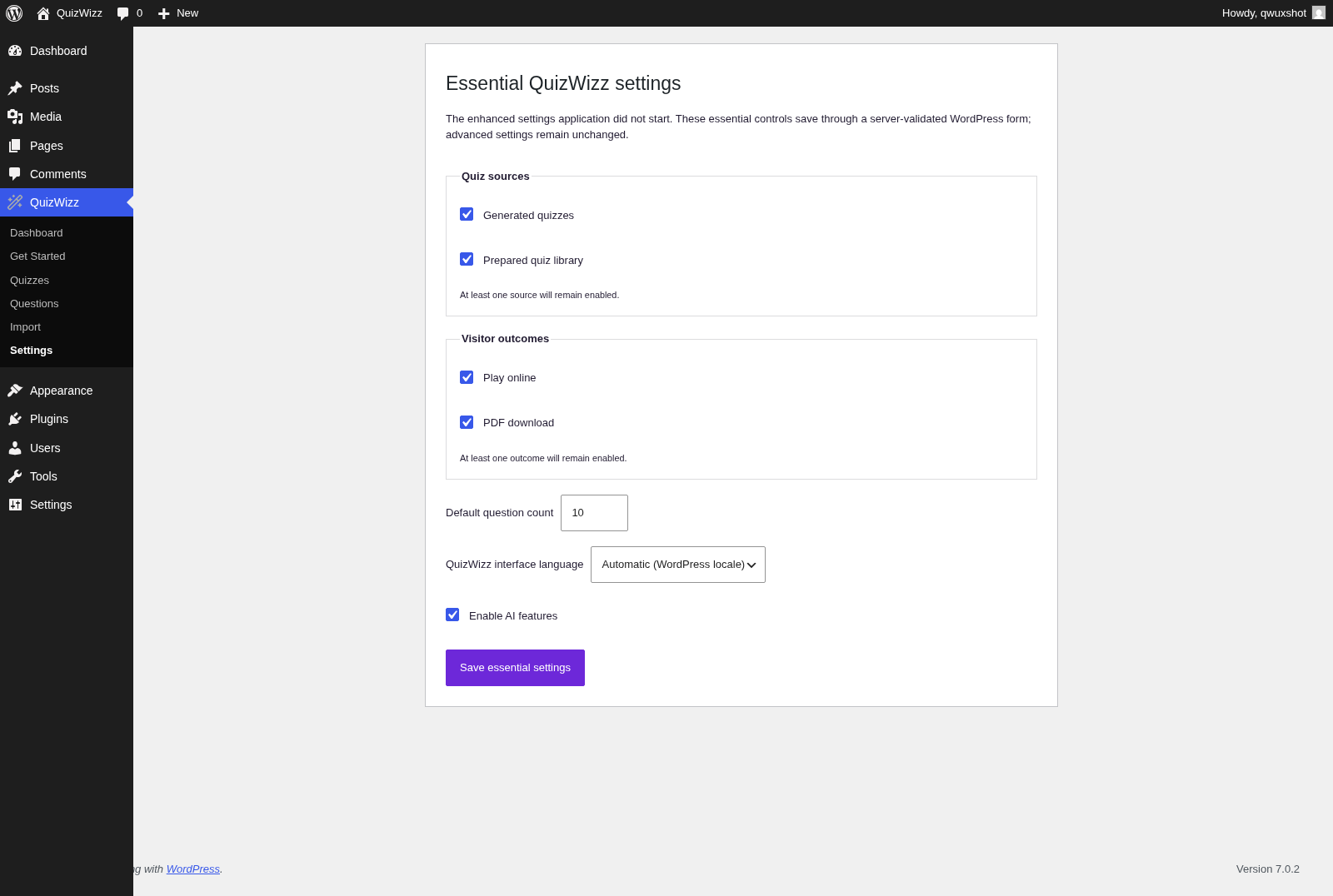

Settings — no-script fallback

• url: admin.php?page=qw-settings
• capability: manage_options — source Admin/views/settings-page.php:67
• state: JavaScript disabled in a separate tab

• contains: server-rendered fallback form

• notes: captured without running the settings JavaScript

• persistence: the seven workspaces use one browser-local state object and persist only after Save settings to option qw_exposure_settings through REST quizwizz/v1/admin/settings.

• workspace order: General → Builder → Player → Appearance → PDF & Brand → AI → Advanced.

• backup caveat: Protected backups are owner-scoped (SettingsBackup::list()); the temporary administrator’s list was empty. That is not evidence that the feature has no owner data.

• settings fallback action: qwizz_save_settings_fallback — Admin/SettingsPage.php:194.

• backup actions: qwizz_backup_download, qwizz_backup_restore, qwizz_backup_delete — Admin/SettingsBackup.php:154,169,197.

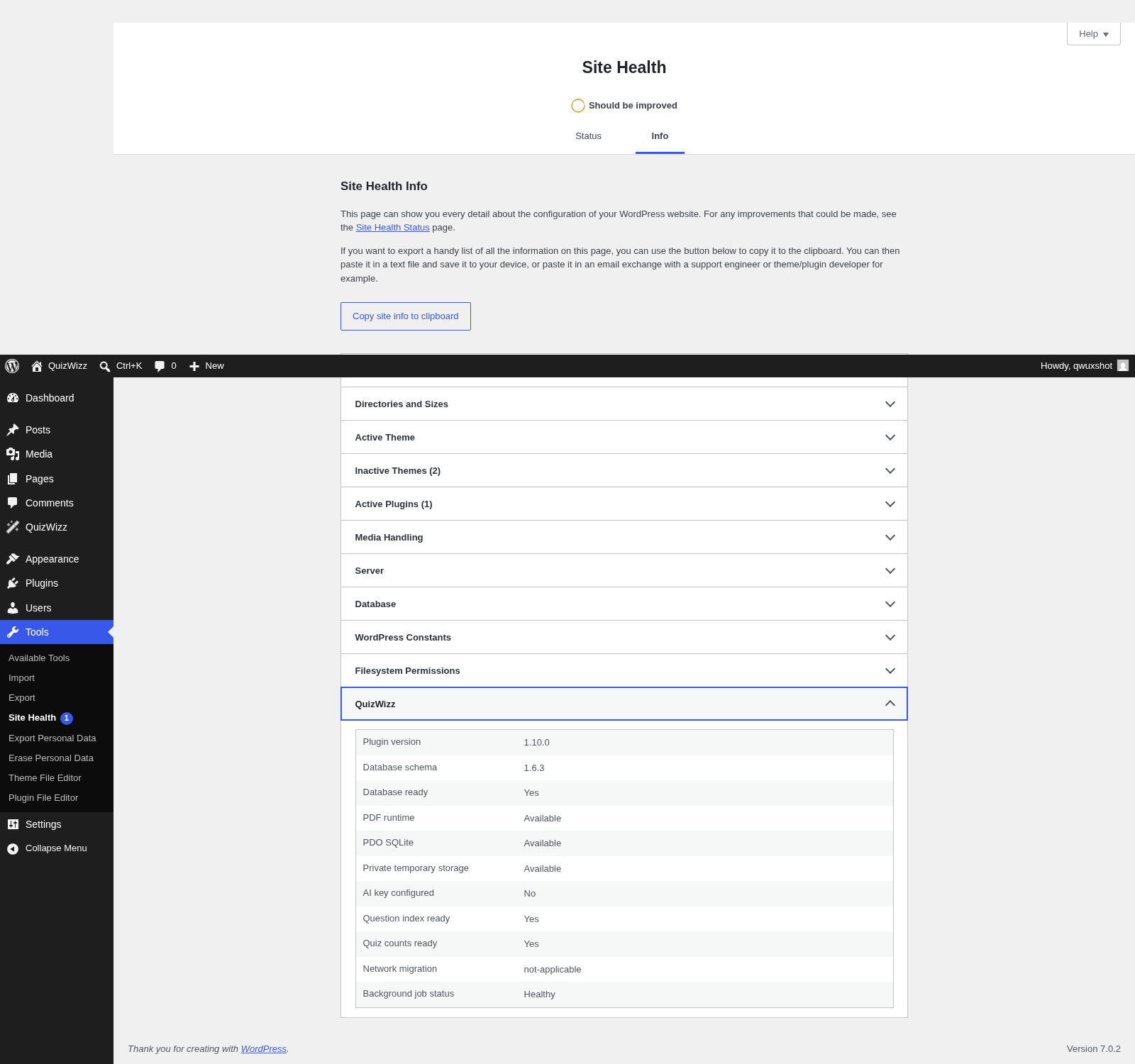

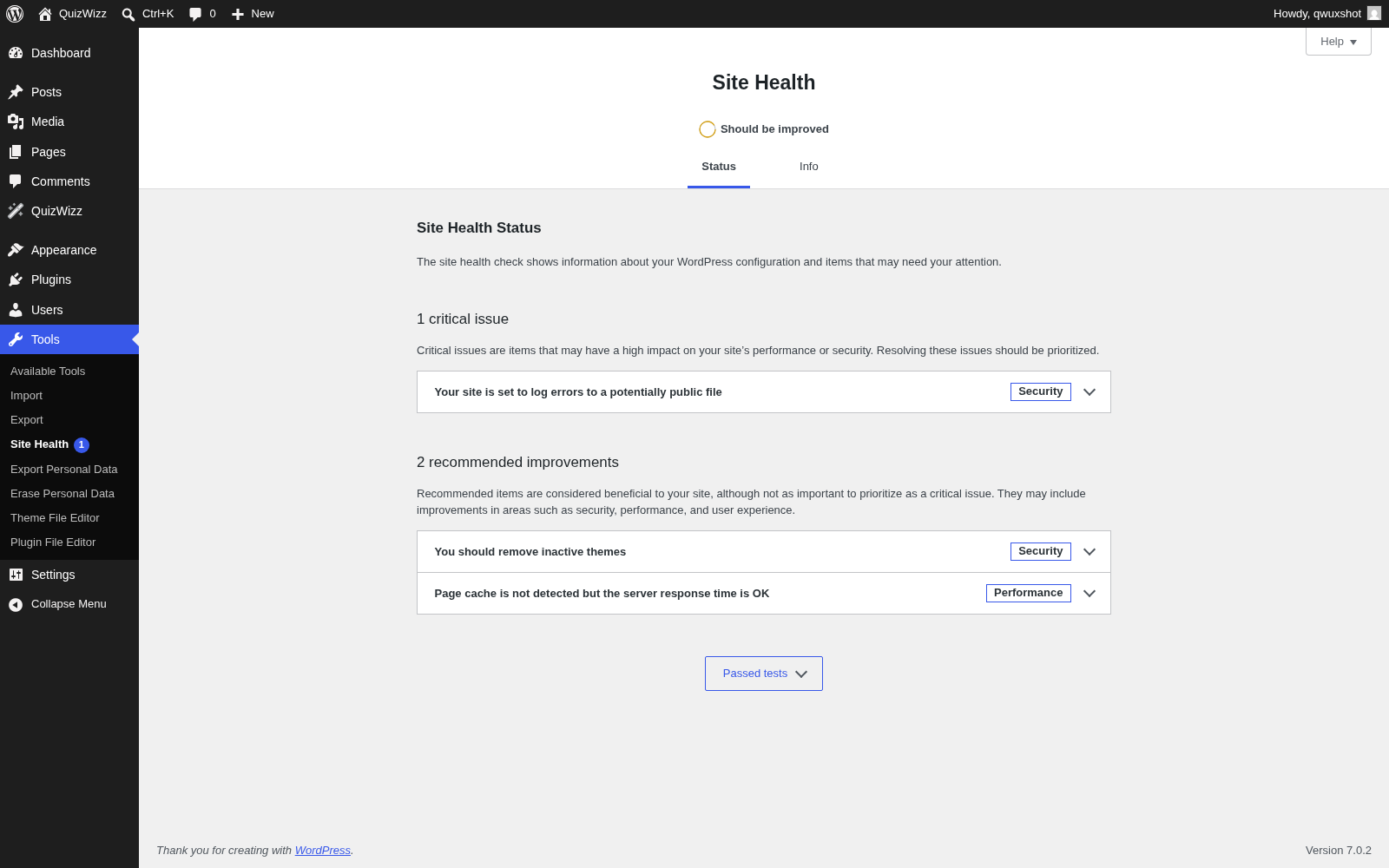

• support action: qwizz_support_bundle — Admin/SiteHealth.php:121.

Option reference

Every key in these tables persists to the single option qw_exposure_settings through REST quizwizz/v1/admin/settings. Values were dumped read-only from ExposureSettings::defaults(), matrix_catalog() and theme_catalog() before the browser pass; they are not hand-transcribed UI guesses.

Settings defaults

Workspace	Section	Control label	Option key path	Type	Default
Builder	Category availability	Category availability map	cats	list	[]
Advanced	Category hierarchy	Show child subjects	cat_ui.show_subs	checkbox	false
Advanced	Category hierarchy	Fold child subjects	cat_ui.fold_subs	checkbox	true
Cross-cutting controls	Exposure matrix	Exposure matrix overrides	matrix	list	[]
Appearance	PDF theme	Theme overrides	themes	list	[]
General	Content languages	English available	langs.en	checkbox	true
General	Content languages	German available	langs.de	checkbox	true
General	Content languages	French available	langs.fr	checkbox	false
General	Content languages	Spanish available	langs.es	checkbox	false
General	Available experiences	Builder experience available	modes.dynamic	checkbox	true
General	Available experiences	Prebuilt experience available	modes.prebuilt	checkbox	true
General	Available experiences	PDF outcome available	outcomes.pdf	checkbox	true
General	Available experiences	Online player outcome available	outcomes.play	checkbox	true
General	Difficulty choices	Any difficulty	diffs.any	checkbox	true
General	Difficulty choices	Easy difficulty	diffs.easy	checkbox	true
General	Difficulty choices	Normal difficulty	diffs.normal	checkbox	true
General	Difficulty choices	Hard difficulty	diffs.hard	checkbox	true
General	Difficulty choices	Progressive difficulty	diffs.prog	checkbox	true
Builder	Question-pool formats	Mixed question pool	question_types.mixed	checkbox	true
Builder	Question-pool formats	Multiple-choice question pool	question_types.multiple	checkbox	true
Builder	Question-pool formats	True/false question pool	question_types.boolean	checkbox	true
General	Quiz size	Minimum questions	count.min	number	1
General	Quiz size	Guest maximum	count.max_guest	number	20
General	Quiz size	Signed-in maximum	count.max_user	number	50
General	Quiz size	Default quiz size	count.default	number	10
General	Quiz size	Quiz-size presets	count.presets	list	[5,10,20]
AI	Access, privacy, budget & capacity	Enable AI features	ai.enabled	checkbox	false
AI	Access, privacy, budget & capacity	Per-user rate limit	ai.rate_user	number	30
AI	Access, privacy, budget & capacity	Daily budget cents	ai.daily_budget_cents	number	100
AI	Access, privacy, budget & capacity	Maximum output tokens	ai.max_output_tokens	number	1800
AI	Access, privacy, budget & capacity	Maximum prompt characters	ai.max_prompt_chars	number	4000
AI	Access, privacy, budget & capacity	Request timeout	ai.timeout	number	25
AI	Access, privacy, budget & capacity	Prompt price guardrail	ai.max_prompt_price	number	10
AI	Access, privacy, budget & capacity	Completion price guardrail	ai.max_completion_price	number	30
AI	Access, privacy, budget & capacity	Per-request price guardrail	ai.max_request_price	number	0.1
AI	Access, privacy, budget & capacity	Data collection policy	ai.data_collection	select / text	"deny"
AI	Access, privacy, budget & capacity	Zero data retention	ai.zdr	checkbox	true
Advanced	Retention & uninstall	Guest quiz retention hours	lifecycle.guest_quiz_hours	number	24
Advanced	Retention & uninstall	Protected backup retention	lifecycle.backup_retention	number	10
Advanced	Retention & uninstall	Preserve on uninstall	lifecycle.preserve_on_uninstall	checkbox	true
Print	Paper & footer / Sheet banner	Footer credit	branding.footer_credit	select / text	"Crafted with QuizWizz"
Print	Paper & footer / Sheet banner	Paper size	branding.paper	select / text	"A4"
Print	Paper & footer / Sheet banner	PDF engine	branding.engine	select / text	"mpdf"
Print	Paper & footer / Sheet banner	Uploaded banner URL	branding.logo_url	select / text	""
Print	Paper & footer / Sheet banner	Sheet banner source	branding.banner_source	select / text	"site"
Print	Paper & footer / Sheet banner	Built-in banner icon	branding.banner_icon	select / text	"wand"
Appearance	Shared presentation	Answer-label style	presentation.prepend_style	select / text	"none"
Appearance	Shared presentation	Question layout columns	presentation.layout_cols	number	1
Appearance	Shared presentation	Show question count	presentation.show_question_count	checkbox	true
Appearance	Shared presentation	Answer-key questions	presentation.answer_key_questions	checkbox	true
Appearance	Shared presentation	Answer-key explanations	presentation.answer_key_explanations	checkbox	true
Player	Feedback & completion actions	Instant feedback	player.instant_feedback	checkbox	true
Player	Feedback & completion actions	Automatic advance delay	player.auto_advance_ms	number	0
Player	Feedback & completion actions	Show explanations	player.explanations	checkbox	true
Player	Feedback & completion actions	Save attempts	player.save_attempts	checkbox	false
Player	Feedback & completion actions	Retry action	player.actions.retry	checkbox	true
Player	Feedback & completion actions	New quiz action	player.actions.new	checkbox	true
Player	Feedback & completion actions	Print action	player.actions.print	checkbox	true
Player	Feedback & completion actions	Share action	player.actions.share	checkbox	true
General	QuizWizz interface	QuizWizz interface language	iface_lang	select / text	"auto"
Advanced	Settings portability	Settings schema version	settings_version	select / text	"1.6.3"
Appearance	PDF theme	Enabled themes	themes_enabled	list	["light"]
Appearance	PDF theme	Default theme	theme_default	select / text	"light"

Matrix catalog

Row id	Label	Default state	Default value	Where shown
key	Answer key & explanations	visitor	true	result
labels	Answer labels (A. / 1. / clean)	visitor	true	sheet
foot	Page numbers	hidden	false	sheet
fill	Name / Date / Class lines	hidden	false	sheet
logo	Banner on the sheet	hidden	false	branding
editor	Pre-print fine-tune editor	visitor	false	flow
play	Play online	visitor	true	outcomes
pdf	Download PDF	visitor	true	outcomes
title	Editable quiz title	visitor	true	flow
lang	Language picker	visitor	true	flow
pdf_theme	PDF theme	hidden	true	sheet

Themes

Theme id	Name	Background	Ink	Accent	Enabled by default	Default
light	Light	#fff	#1f2430	#6d28d9	true	true
dark	Dark	#16181d	#e8eaf0	#a78bfa	false	false
retro	Retro	#efe6d0	#3b3630	#c4452f	false	false
cyber	Cyber	#0e0b1e	#eae6ff	#f5d90a	false	false
love	Love	#fdf0f4	#4a2b36	#c2185b	false	false
aqua	Aqua	#eaf4f8	#123a4c	#0e7490	false	false

Quizzes & Questions

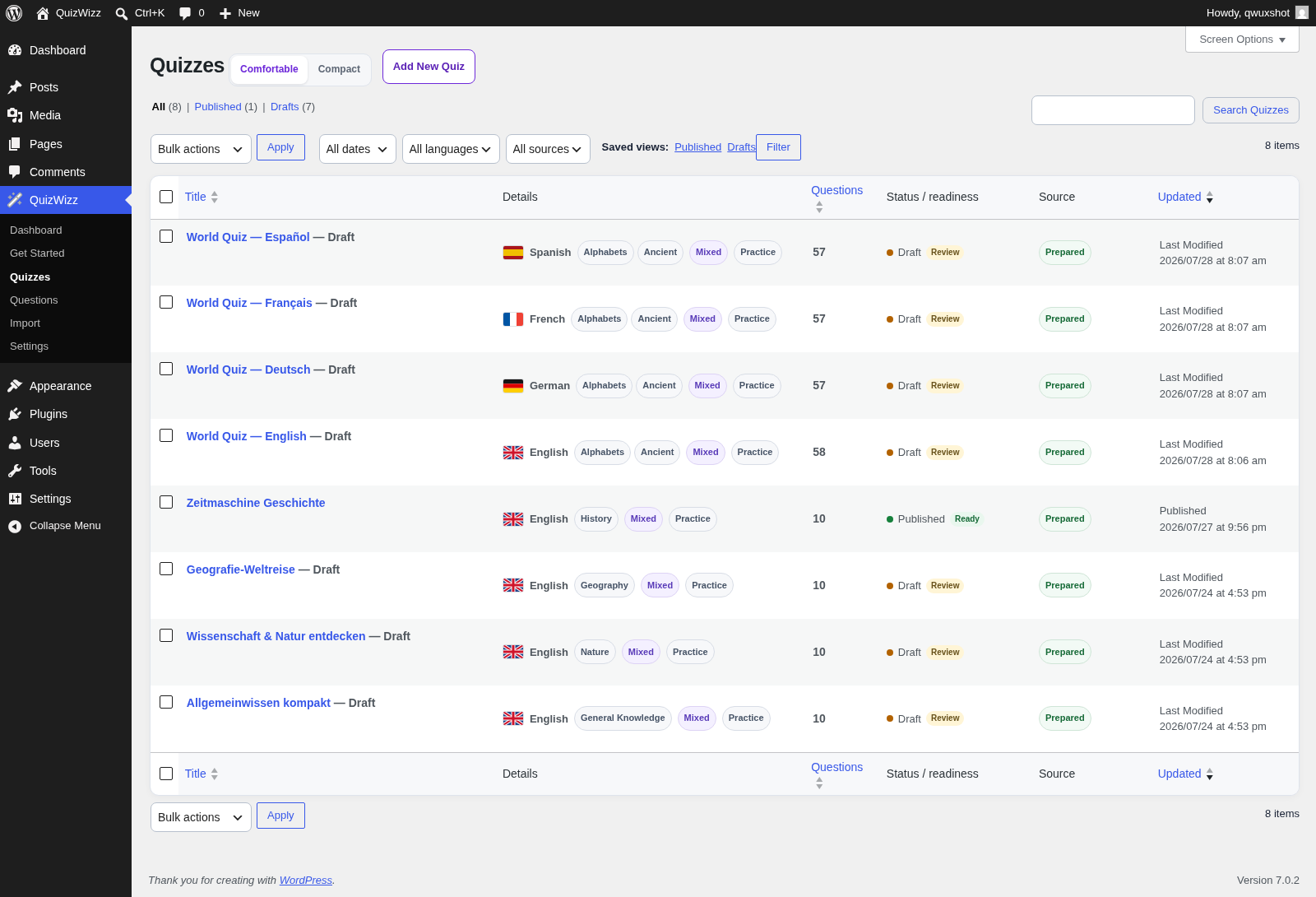

Quizzes list

• url: edit.php?post_type=qw_quiz
• capability: edit_qw_quizzes — source Admin/ListTables.php:37
• state: stored list

• contains: custom Details, Questions, status-readiness and Source columns
• notes: list is parent-highlighted under QuizWizz

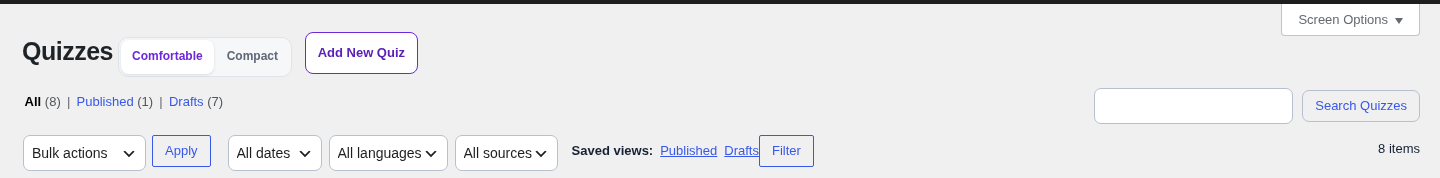

Quizzes list — filters

• url: edit.php?post_type=qw_quiz
• capability: edit_qw_quizzes — source Admin/ListTables.php:122
• state: stored list

• contains: saved-view and top filter controls
• notes: filter controls are native list-table controls

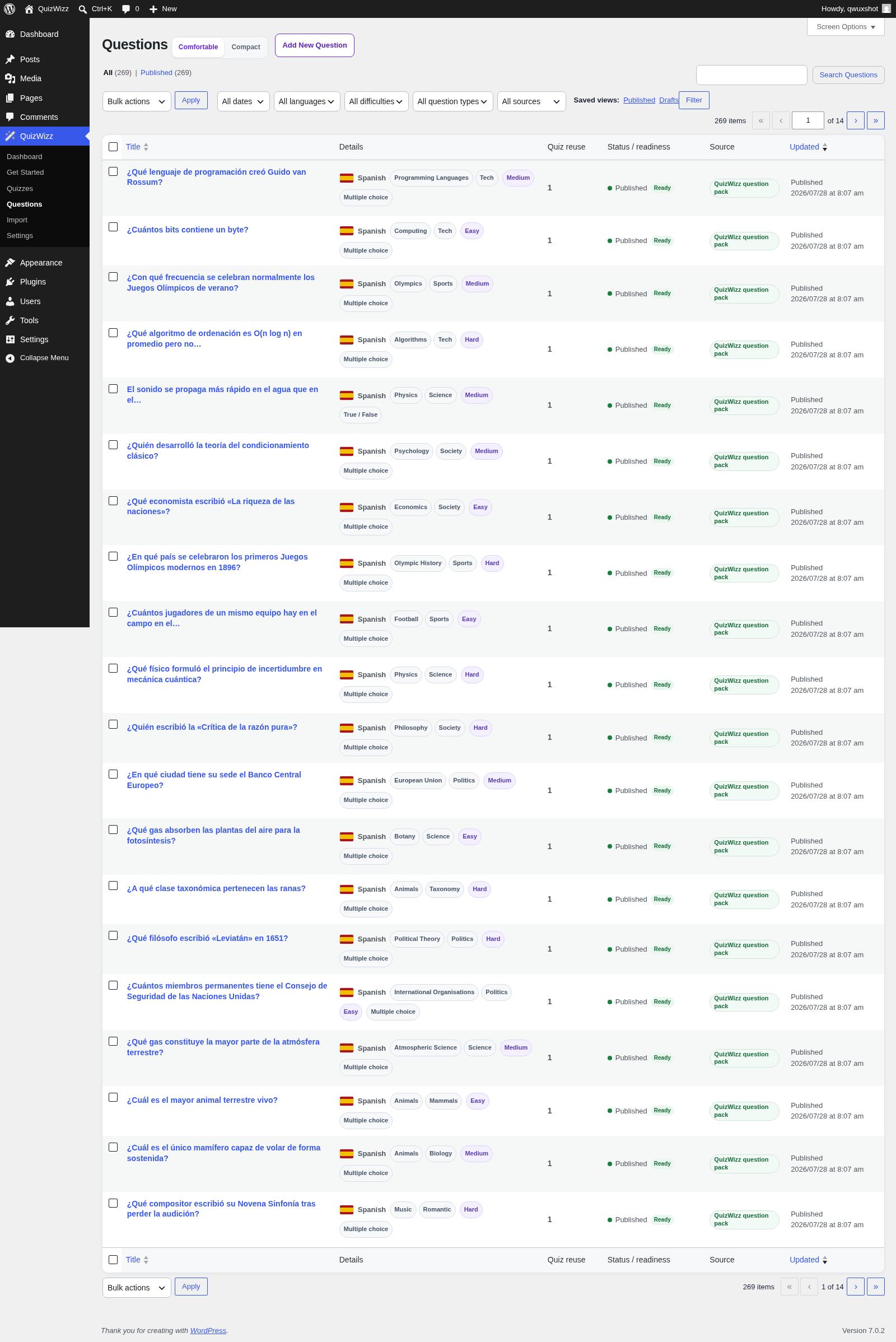

Questions list

• url: edit.php?post_type=qw_question
• capability: edit_qw_questions — source Admin/ListTables.php:44
• state: stored list

• contains: question columns, saved views and taxonomy filters
• notes: classic WordPress list-table UI

Questions list — active filter

• url: edit.php?post_type=qw_question&qw_lang=de
• capability: edit_qw_questions — source Admin/ListTables.php:188
• state: revealed by selecting German in the filter UI

• contains: Active filters badge and Clear all control
• notes: the resulting URL records the selected filter

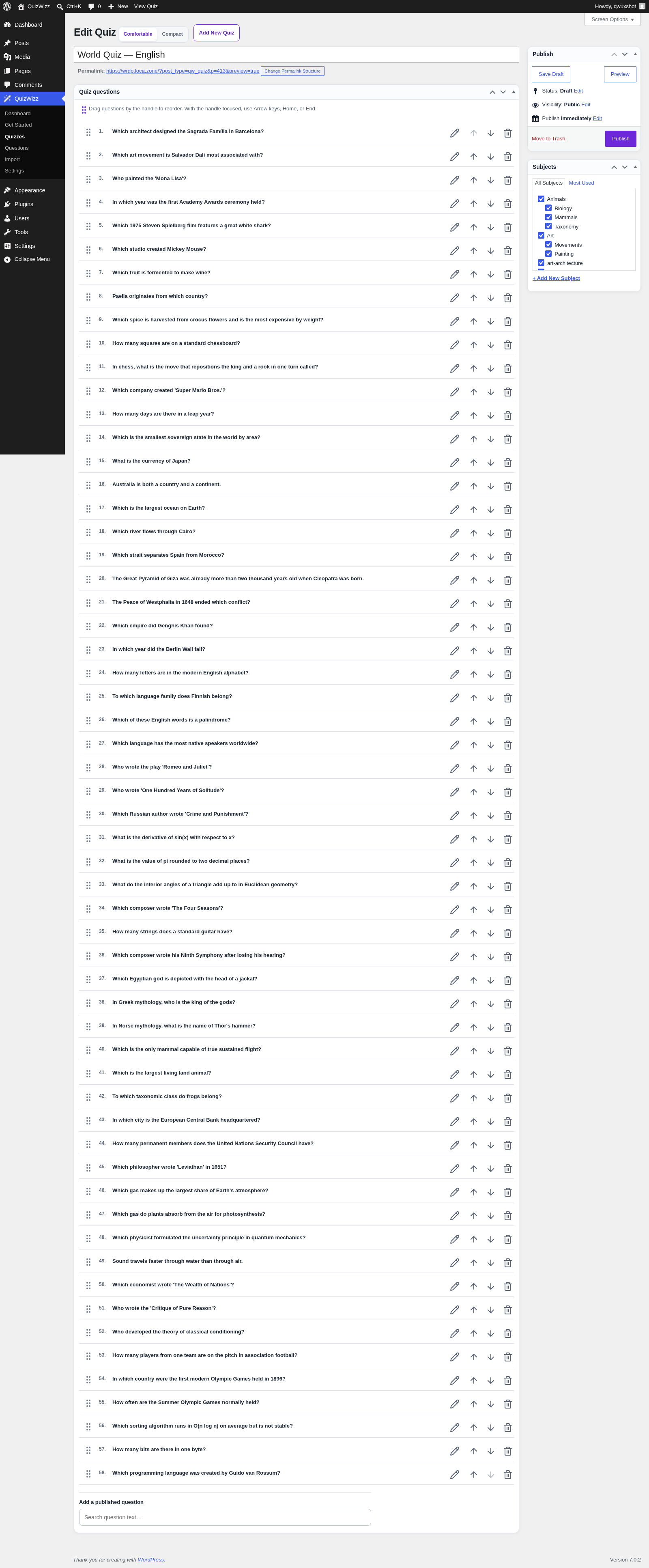

Quiz editor

• url: post.php?post=413&action=edit
• capability: edit_qw_quizzes — source Admin/MetaBoxes.php:85
• state: existing draft 413

• contains: Quiz questions meta box and linked question rows
• notes: Update was not clicked

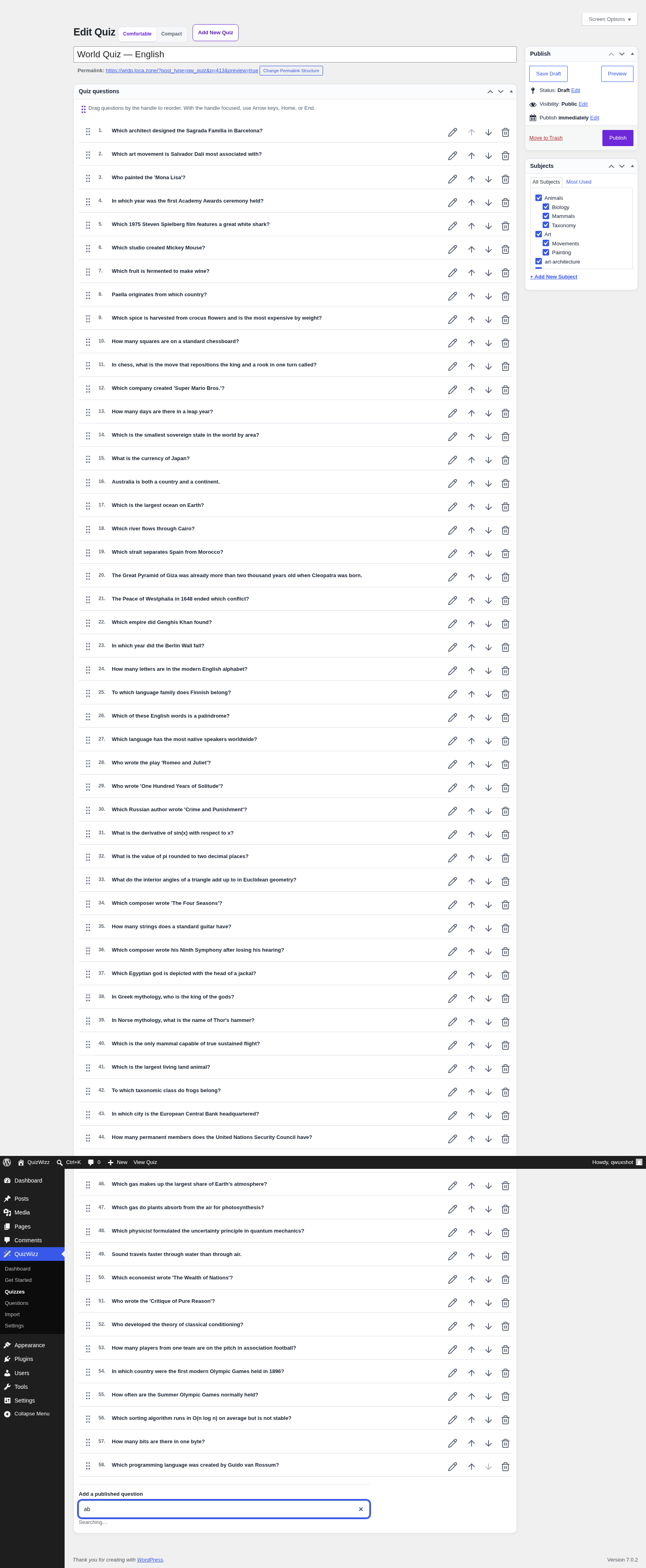

Quiz editor — question search

• url: post.php?post=413&action=edit
• capability: edit_qw_quizzes — source Admin/MetaBoxes.php:85
• state: revealed by typing two characters, not saved

• contains: question-search combobox results
• notes: typing was not committed to the quiz

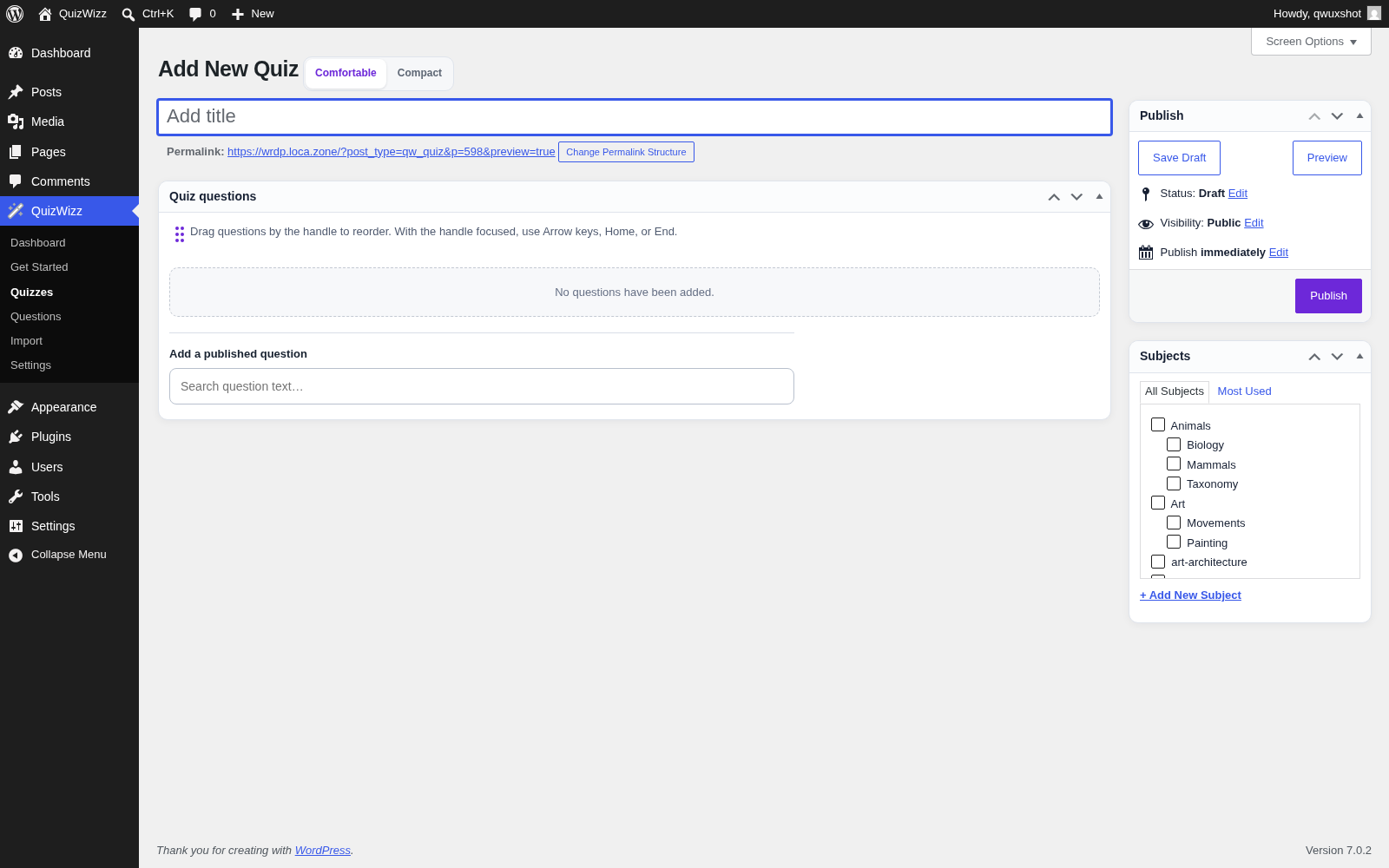

New quiz editor

• url: post-new.php?post_type=qw_quiz
• capability: edit_qw_quizzes — source Admin/MetaBoxes.php:85
• state: new editor

• contains: empty Quiz questions meta box
• notes: no post was created or updated

Question editor

• url: post.php?post=583&action=edit
• capability: edit_qw_questions — source Admin/MetaBoxes.php:76
• state: existing question 583

• contains: Question details fields and subject sidebar
• notes: Update was not clicked

New question editor

• url: post-new.php?post_type=qw_question
• capability: edit_qw_questions — source Admin/MetaBoxes.php:76
• state: new editor

• contains: empty Question details meta box

• notes: no post was created or updated

• list-table source: Admin/ListTables.php:37,44,122,188.

• meta-box source: Admin/MetaBoxes.php:76,85; transient render_save_error() (:442) was not manufactured.

Subjects taxonomy

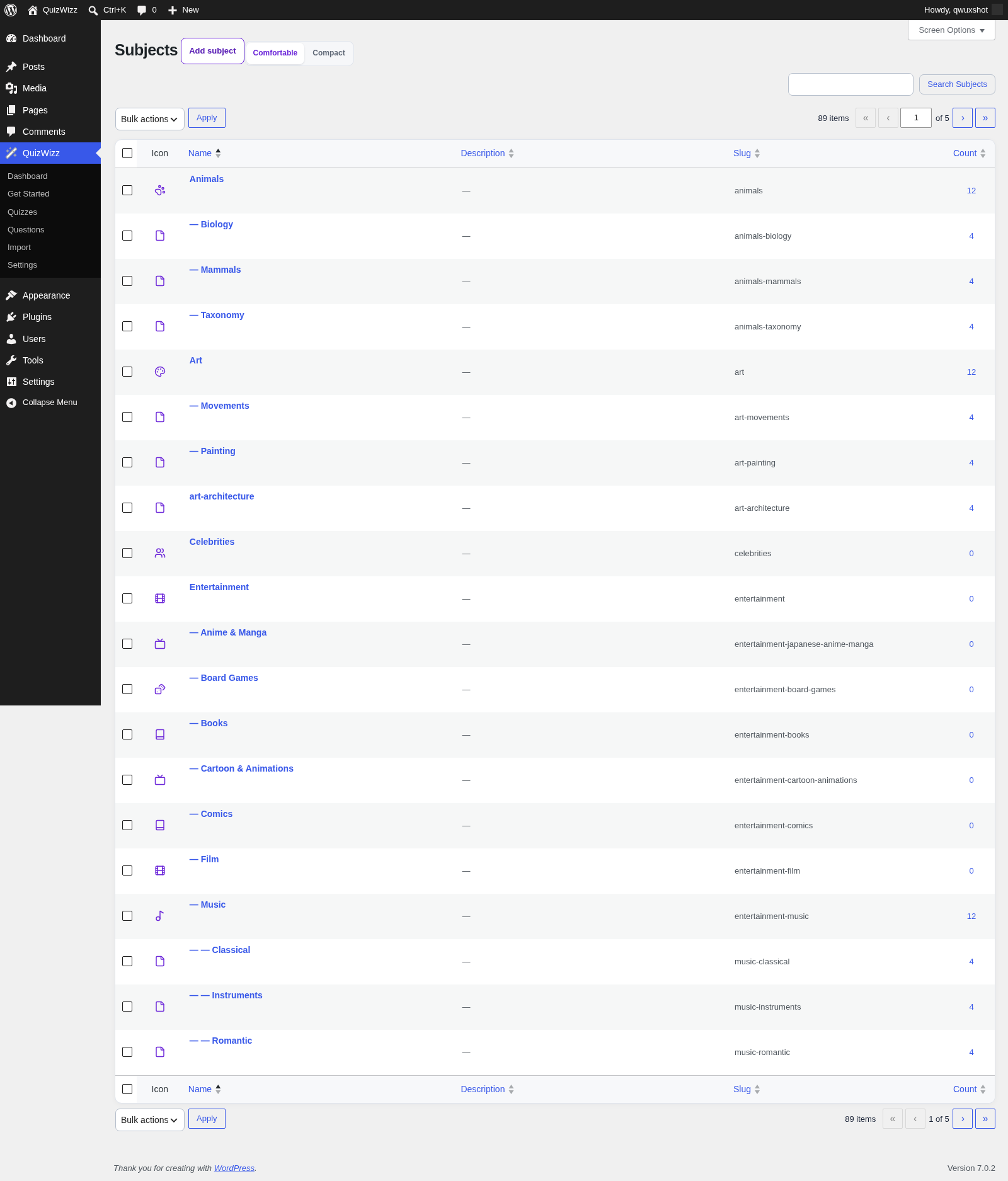

Subjects list

• url: edit-tags.php?taxonomy=qw_subject&post_type=qw_question
• capability: manage_categories — source Taxonomies.php:92
• state: stored list

• contains: subject rows and qwizz_icon column
• notes: only qw_subject has an admin taxonomy screen

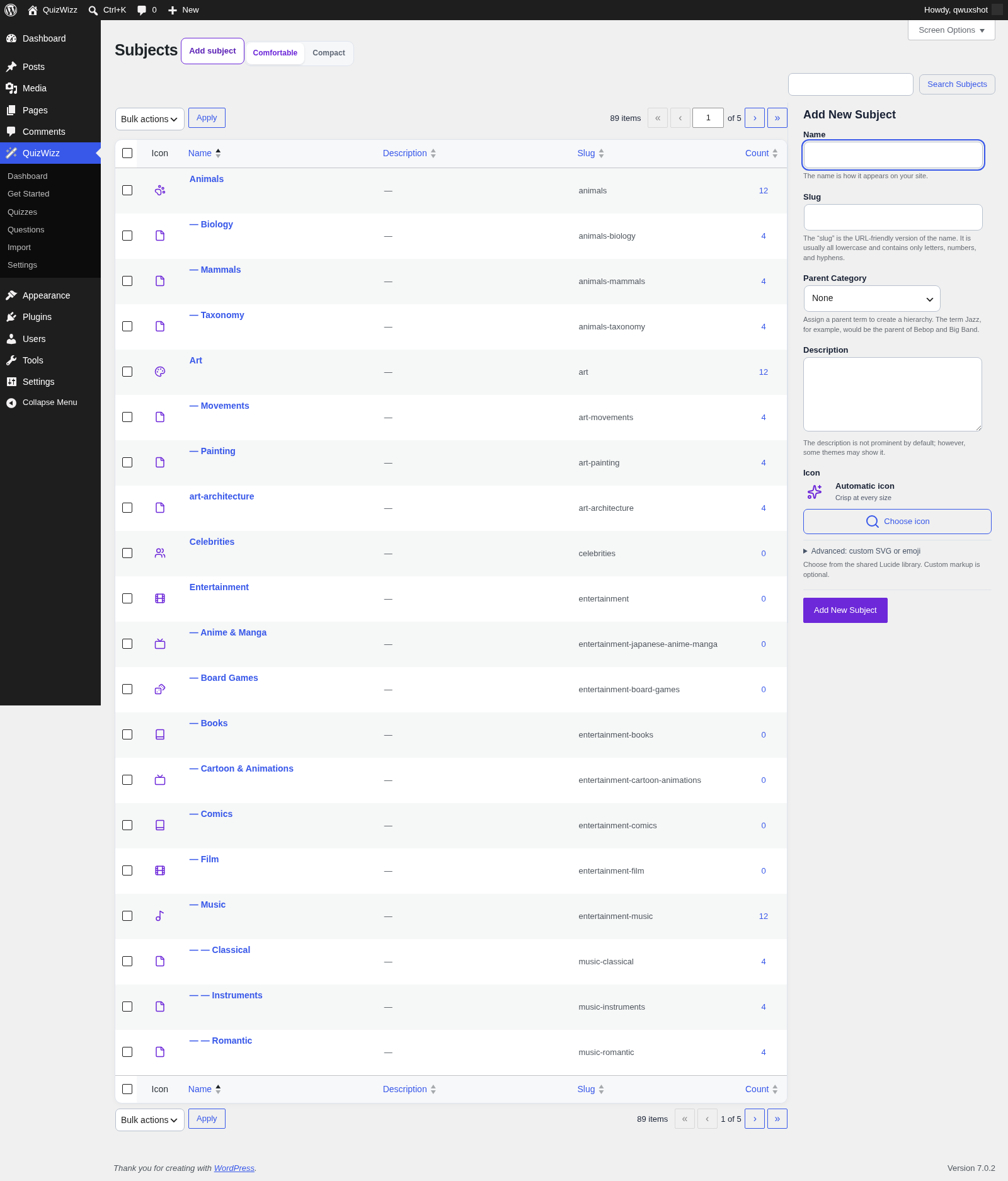

Subjects — add form

• url: edit-tags.php?taxonomy=qw_subject&post_type=qw_question
• capability: manage_categories — source assets/js/qwizz-admin-subjects.js:21
• state: revealed by expanding Add Subject, not saved

• contains: expanded create form
• notes: the form was not submitted

Subjects — icon picker

• url: term.php?taxonomy=qw_subject&tag_ID=380
• capability: manage_categories — source Taxonomies.php:177
• state: revealed by opening icon picker, not saved

• contains: icon choices and advanced SVG / emoji details

• notes: term Update was not clicked

• qw_difficulty, qw_language and qw_tag have show_ui => false (Taxonomies.php:49-77), so no equivalent WordPress admin screen exists.

Block editor

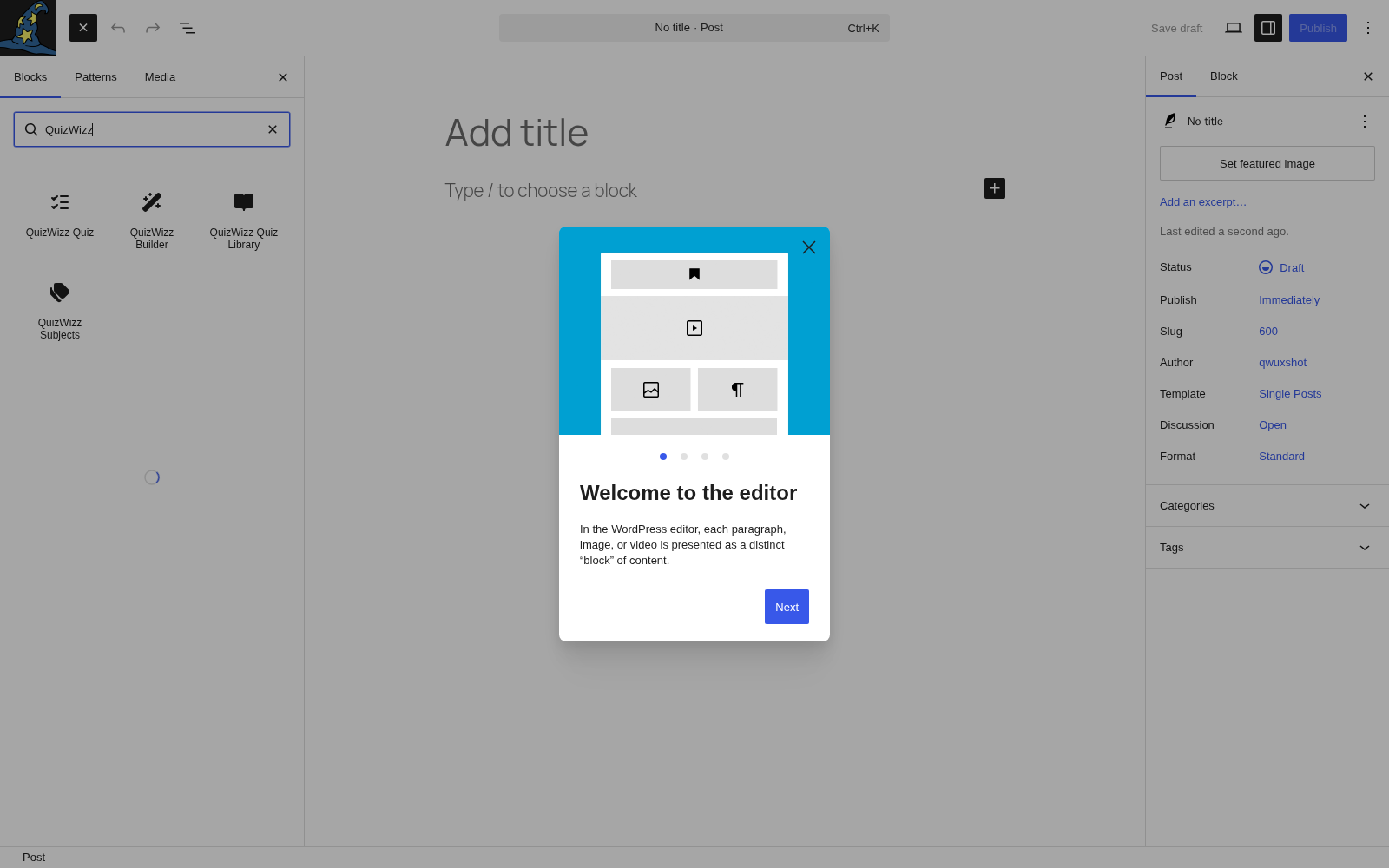

Block inserter

• url: post-new.php?post_type=post
• capability: edit_posts — source includes/Plugin.php:86-142
• state: scratch post; never saved

• contains: all four QuizWizz blocks under Widgets
• notes: scratch editor used a temporary administrator

Quiz block inspector

• url: post-new.php?post_type=post
• capability: edit_posts — source build/quiz/index.js:192
• state: scratch post; never saved

• contains: Quiz settings panel and quiz combobox
• notes: editor state was discarded

Quiz Library block inspector

• url: post.php?post=600&action=edit
• capability: edit_posts — source build/quiz/index.js:304
• state: scratch post; never saved

• contains: Quiz library settings: limit, columns, subject, language and discovery
• notes: the resulting scratch draft was force-deleted

Subjects block inspector

• url: post.php?post=600&action=edit
• capability: edit_posts — source build/quiz/index.js:330
• state: scratch post; never saved

• contains: Subject explorer settings: columns and quiz counts
• notes: the resulting scratch draft was force-deleted

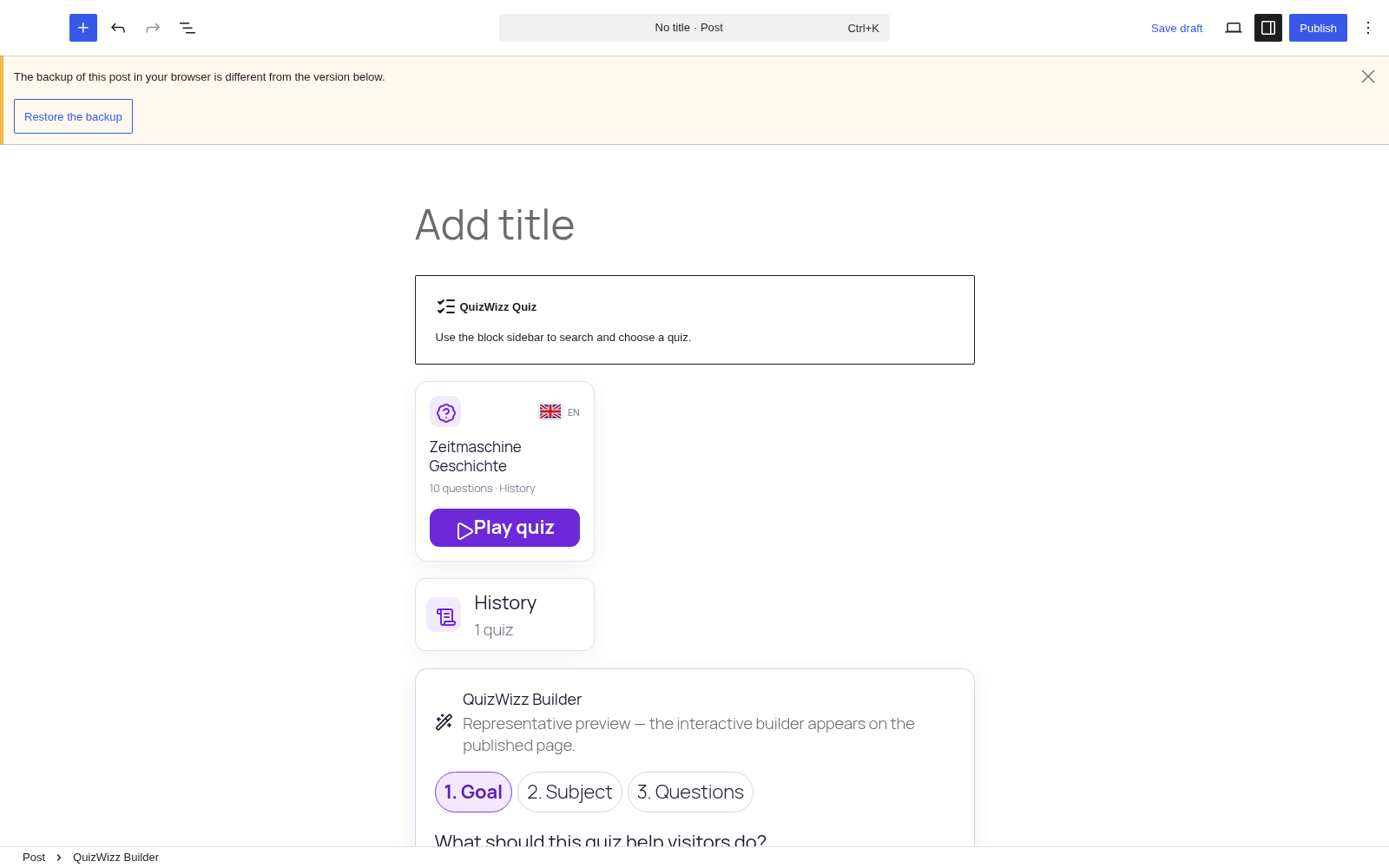

Builder block placeholder

• url: post.php?post=600&action=edit
• capability: edit_posts — source build/quiz/index.js:192
• state: scratch post; never saved

• contains: QuizWizz Builder canvas placeholder

• notes: the resulting scratch draft was force-deleted

• registered blocks: quizwizz/quiz, quizwizz/craft, quizwizz/library, quizwizz/subjects; category widgets (includes/Plugin.php:86-142).

WordPress integrations

Site Health tests

• url: site-health.php
• capability: view_site_health_checks — source Admin/SiteHealth.php:47
• state: accordions opened

• contains: QuizWizz database-schema and PDF-runtime tests
• notes: both native accordions were expanded

Site Health debug

• url: site-health.php?tab=debug
• capability: view_site_health_checks — source Admin/SiteHealth.php:75
• state: accordion opened

• contains: QuizWizz debug-information panel
• notes: the panel is read-only

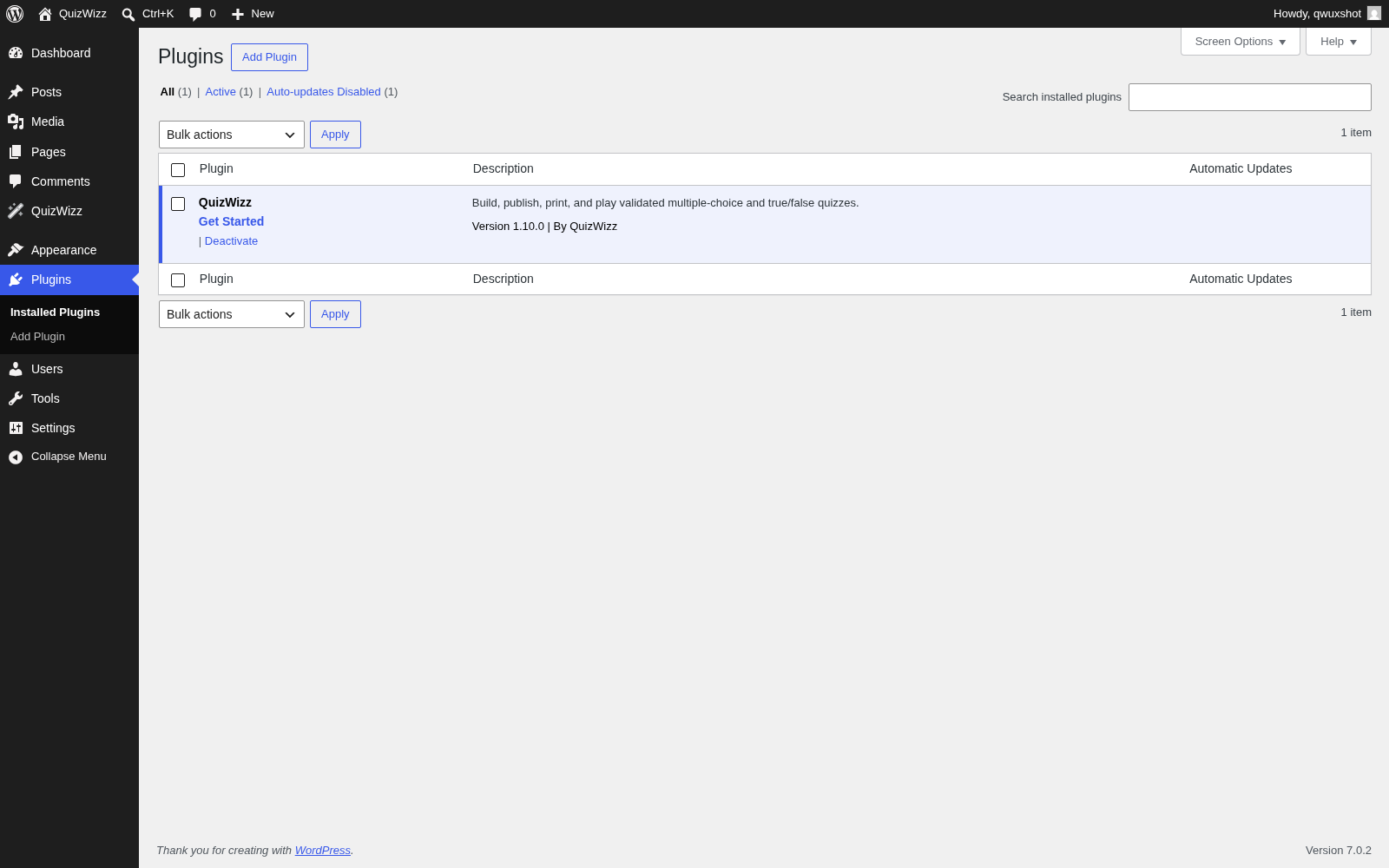

Plugins row

• url: plugins.php
• capability: activate_plugins — source Admin/StarterPage.php:27
• state: stored plugins page

• contains: QuizWizz row action Get Started
• notes: the action link was not followed

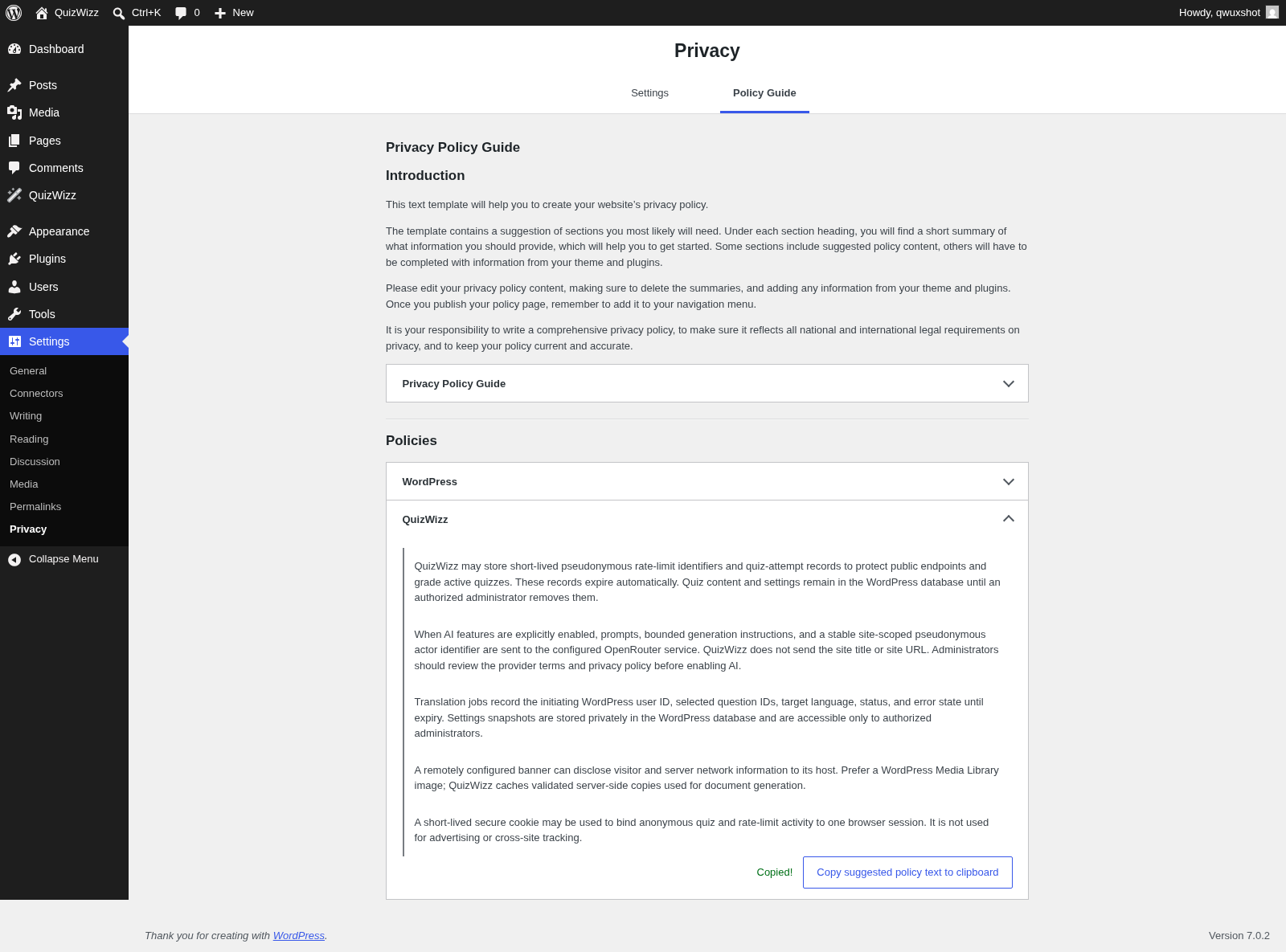

Privacy policy guide

• url: options-privacy.php?tab=policyguide
• capability: manage_privacy_options — source Admin/Privacy.php:18
• state: accordion opened

• contains: QuizWizz suggested privacy text
• notes: the policy was not created or edited

Coverage checklist

Surface	Admin URL	Screenshot	Captured	Reason if not
Top-level Dashboard	admin.php?page=qw-dashboard	menu-quizwizz	yes
Settings	admin.php?page=qw-settings	settings-chrome; settings-general … settings-noscript-fallback	yes	7 workspaces captured
Get Started	admin.php?page=qw-get-started	get-started-full	yes
Import	admin.php?page=qw-import	import-full; import-question-pack	yes
Quizzes CPT	edit.php?post_type=qw_quiz	list-quizzes; list-quizzes-filters; editor-quiz; editor-quiz-new	yes
Questions CPT	edit.php?post_type=qw_question	list-questions; list-questions-active-filters; editor-question; editor-question-new	yes
Subjects taxonomy	edit-tags.php?taxonomy=qw_subject&post_type=qw_question	subjects-list; subjects-create-form; subjects-icon-picker	yes
Dashboard details	admin.php?page=qw-dashboard	dashboard-tools	yes	Tools & status opened
Legacy media URL details	admin.php?page=qw-settings#qw-pdf	settings-print	yes	native details opened
AI details	admin.php?page=qw-settings#qw-ai	settings-ai	yes	native details opened
Provider price guardrails	admin.php?page=qw-settings#qw-ai	settings-ai	yes	native details opened
Older protected backups	admin.php?page=qw-settings#qw-data	settings-advanced	yes	empty for temporary owner
Subject advanced icon details	term.php?taxonomy=qw_subject&tag_ID=380	subjects-icon-picker	yes	native details opened
Automatic advance panel	admin.php?page=qw-settings#qw-player	settings-player	yes	real radio toggle; not saved
Banner source panels	admin.php?page=qw-settings#qw-pdf	settings-print; settings-print-banner-site; settings-print-banner-upload	yes	real controls; not saved
AI detail panel	admin.php?page=qw-settings#qw-ai	settings-ai	yes	real checkbox; not saved
Settings search	admin.php?page=qw-settings	settings-search	yes	typed theme; not saved
Settings preview	admin.php?page=qw-settings	settings-preview	yes	modal opened
Subject icon picker	term.php?taxonomy=qw_subject&tag_ID=380	subjects-icon-picker	yes	picker opened
Subject create form	edit-tags.php?taxonomy=qw_subject&post_type=qw_question	subjects-create-form	yes	toggle opened
Dashboard density	admin.php?page=qw-dashboard	dashboard-density-compact	yes	local density toggle
Question pack preflight	admin.php?page=qw-import	import-question-pack	not captured	requires selecting a file; no upload was performed
Quiz questions meta box	post.php?post=413&action=edit	editor-quiz; editor-quiz-search; editor-quiz-new	yes
Question details meta box	post.php?post=583&action=edit	editor-question; editor-question-new	yes
Quiz list table	edit.php?post_type=qw_quiz	list-quizzes; list-quizzes-filters	yes
Question list table	edit.php?post_type=qw_question	list-questions; list-questions-active-filters	yes
Hidden taxonomies	—	—	not captured	qw_difficulty, qw_language, qw_tag have show_ui => false
Quiz block	post-new.php?post_type=post	block-quiz-inspector	yes
Builder block	post-new.php?post_type=post	block-craft-placeholder	yes
Library block	post-new.php?post_type=post	block-library-inspector	yes
Subjects block	post-new.php?post_type=post	block-subjects-inspector	yes
Site Health tests	site-health.php	site-health-tests	yes
Site Health debug	site-health.php?tab=debug	site-health-debug	yes
Plugins row action	plugins.php	plugins-row	yes
Privacy suggested text	options-privacy.php?tab=policyguide	privacy-policy-guide	yes
qw_import	admin-post	import-full	yes	not submitted
qwizz_import_question_pack	admin-post	import-question-pack	yes	not submitted
qwizz_save_settings_fallback	admin-post	settings-noscript-fallback	yes	not submitted
qwizz_install_starter_library	admin-post	get-started-full	yes	not submitted
qwizz_backup_download	admin-post	settings-advanced	yes	owner-scoped list empty
qwizz_backup_restore	admin-post	settings-advanced	yes	owner-scoped list empty
qwizz_backup_delete	admin-post	settings-advanced	yes	owner-scoped list empty
qwizz_support_bundle	admin-post	settings-advanced; site-health-debug	yes	not submitted
First-run notice	admin notice	—	not captured	requires zero quizzes; bench has drafts
Migration notice	admin notice	—	not captured	transient migration state
Meta-box save error	editor notice	—	not captured	transient validation-error state

Capture method

• viewport: 1600 × 1000, scale 1; browser cache disabled and transitions/animations suppressed.
• folded surfaces: native <details> elements were opened after navigation. Conditional regions were revealed only by invoking their real controls; no CSS visibility override was used.
• temporary states: every caption that used a toggle says so. The settings page was reloaded after the pass and reported qwizz-save-status is-saved.
• settings digest before capture: bdc291754ae86842aaaed267e37128e4f2ca34ed27190735d5be1b8a7bc8ed56.
• settings digest after capture: bdc291754ae86842aaaed267e37128e4f2ca34ed27190735d5be1b8a7bc8ed56 — byte-identical to the pre-capture digest.
• editor cleanup: the scratch post was post ID 600, author qwuxshot; it was force-deleted after capture. No regular bench post was altered.
• limitations: first-run, migration and transient save-error surfaces were honestly marked not captured rather than fabricated.
• capture correction (2026-07-28): three assets were found byte-identical to another capture and were re-derived as native-resolution crops of their parent full-page captures — settings-chrome.png and list-quizzes-filters.png from settings-general.png and list-quizzes.png, and settings-exposure-matrix.png as a 2× nearest-neighbour magnification of the PDF exposure rows in settings-print.png. Same rendered pixels, no new browser session. Details in the UX Atlas Audit.
